Installing this version

To update your firewall to SNS version 3.11.30 LTSB, we recommend that you carefully follow the procedure below.

Before starting the update, ensure that you have read the Product life cycle guide and the sections Important information regarding SNS 3.11 LTSB versions and Recommendations.

Checking the compatibility of Stormshield Network client applications

If Stormshield client applications (SSO agents, SSL VPN clients and VPN clients) are used in your architecture, check their compatibility with the version of the SNS firewall that you wish to install. If any component is incompatible, these applications will stop functioning correctly.

For more information, refer to the Product life cycle guide and the Version release notes of the client applications in question.

Creating a configuration backup

Before upgrading your firewall, we recommend that you back up its current configuration.

If you have enabled Automatic configuration backup on your firewall, ensure that it is available on the configured backup server. If you do not use this feature, we recommend that you enable it.

You can create configuration backup files from the firewall's web administration interface, in System > Maintenance > Backup. For more information, refer to the Backup tab section in the SNS user manual.

Updating the firewall

Update paths

To update your firewall, you may need to apply one or more intermediate updates, depending on its original version:

Original version Intermediate updates required

2.x

Version 3.11.4 LTSB

Downloading the update

  1. In your MyStormshield personal area, go to Downloads > Downloads.

  2. Select Stormshield Network Security > Firmware > 3.X from the suggested categories.

  3. For version SNS 3.11.30 LTSB, click on the name that matches your firewall model to download the update file. Accept the download of the .maj file.

  4. Enter one of the following commands to check the integrity of the retrieved binary files:

    • Linux operating systems:

      sha256sum <filename>
      sha1sum <filename>

    • Windows operating systems:

      CertUtil -hashfile <filename> SHA256
      CertUtil -hashfile <filename> SHA1

    Next, compare the result obtained with the SHA1 hash indicated in the firewall's web administration interface or with the SHA256 hash indicated in MyStormshield.

Installing the update

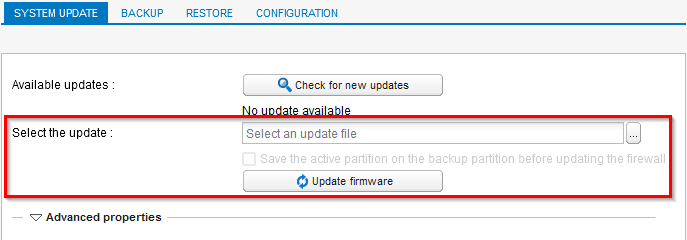

  1. In the firewall's web administration interface, in System > Maintenance, System update tab, select the update file (.maj file) downloaded earlier.

  2. Click on Update firmware.



  3. The update will start: do not unplug the firewall during the operation. When the update is complete, you will be logged out and asked to re-authenticate.

    If an issue prevents the update from proceeding, you will be informed before the operation begins.
