Modèle SNxr1200

Connectique et voyants

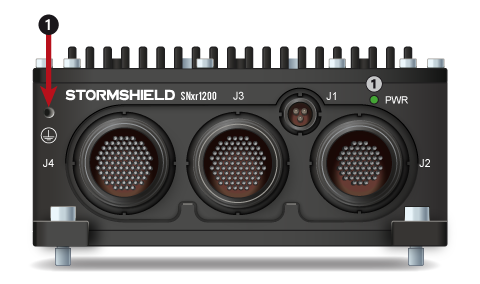

1 Voyant Power (vert)

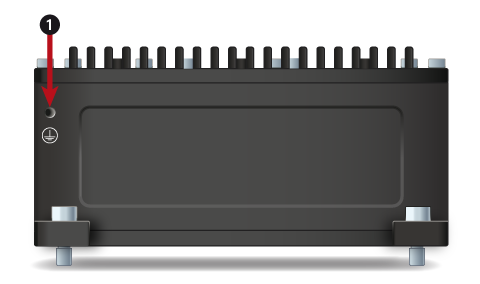

1 Branchement de mise à la terre.

Branchement des connectiques

Pour accéder à votre firewall depuis un poste client, il faut vous connecter sur le port IN dit “Interne” ou sur un autre port (excepté le port OUT), situés sur les connecteurs J3 ou J4.
Pour plus d'information, reportez-vous à la section Connectiques réseau, partie Définition IN / OUT.

Pour des besoins de test, un "Kit de connexion IT" (câbles Breakout) est disponible en option. Ce kit n'est pas destiné à un usage en production.

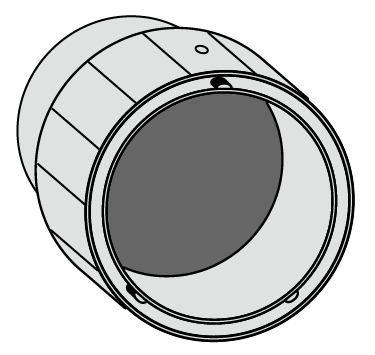

Pour brancher les câbles, enclenchez les détrompeurs selon le schéma ci-contre (détrompeurs propres à chaque connecteur), puis vissez fermement afin d'assurer l'étanchéité du produit.

Connecteurs J1

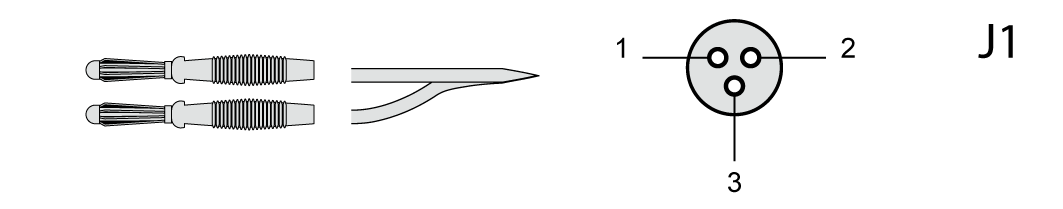

Les connecteurs J1, dédiés à l'alimentation du produit, sont décrits ci-dessous.
L'adaptateur secteur (fourni en option) se raccorde au câble Breakout ("Kit de connexion IT"' fourni en option) correspondant à ce connecteur.


Pin Signal
J1.1 VIN_28+
J1.2 VIN_28-
J1.3 n/a

Connecteurs J2

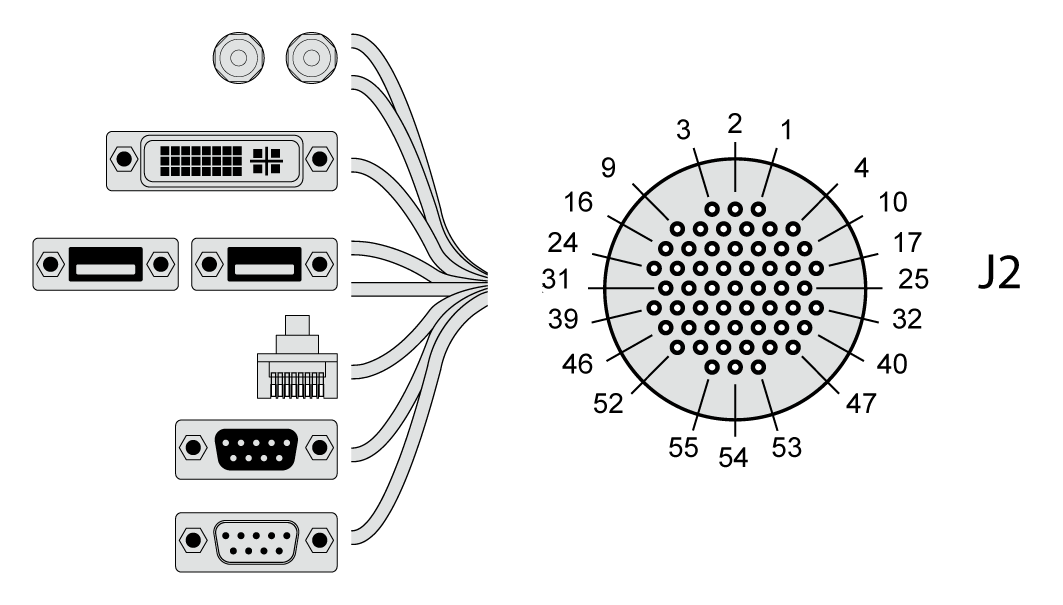

Les connecteurs J2 correspondent aux connectiques suivantes :

  • 2 boutons poussoir : Interrupteur ON/OFF et bouton Reset (reset électrique),
  • 1 port de sortie DVI,
  • 2 ports USB 2.0,
  • 1 port Ethernet RJ45 1Gbps,
  • 1 port série RS232,
  • 1 port série RS422.

Connectiques "Kit de connexion IT"

2 boutons poussoir : Interrupteur ON/OFF
et bouton Reset (reset électrique)

Détail Pin Signal
ON J2.10 POWER_BUTTON+
OFF J2.11 POWER_BUTTON-
RESET J2.17 RESET_BUTTON+
J2.18 RESET_BUTTON-

1 port Ethernet
RJ45 1Gbps

Détail Pin Signal
OUT 1 J2.32 ETH1_MDI0+
J2.33 ETH1_MDI0-
J2.34 ETH1_MDI1+
J2.35 ETH1_MDI1-
J2.36 ETH1_MDI2+
J2.37 ETH1_MDI2-
J2.38 ETH1_MDI3+
J2.39 ETH1_MDI3-

1 port de sortie DVI

  Pin Signal
J2.2 DVI_DATA2+
J2.3 DVI_DATA2-
J2.4 DVI_DDCCLK
J2.5 DVI_DDCDATA
J2.6 DVI_HPD
J2.2 DVI_DATA2+

1 port série RS232

  Pin Signal
J2.45 RS232_SER0_TX
J2.46 RS232_SER0_RX

2 ports USB 2.0

Détail

Pin Signal
USB n°1 J2.47 USB0_5VDC
J2.48 USB0-
J2.49 USB0+
J2.50 USB0_GND
USB n°2 J2.51 USB1_GND
J2.53 USB1_5VDC
J2.54 USB1-
J2.55 USB1+



1 port série RS422



Pin Signal
J2.40 RS422_SER0_RXN
J2.41 RS422_SER0_RXP
J2.42 RS422_SER0_TXN
J2.43 RS422_SER0_TXP

Synthèse des connecteurs J2

Pin Signal Pin Signal Pin Signal
J2.1 GND J2.21 n/a J2.41 RS422_SER0_RXP
J2.2 DVI_DATA2+ J2.22 GND J2.42 RS422_SER0_TXN
J2.3 DVI_DATA2- J2.23 DVI_CLK+ J2.43 RS422_SER0_TXP
J2.4 DVI_DDCCLK J2.24 DVI_CLK- J2.44 GND
J2.5 DVI_DDCDATA J2.25 n/a J2.45 RS232_SER0_TX
J2.6 DVI_HPD J2.26 n/a J2.46 RS232_SER0_RX
J2.7 GND J2.27 n/a J2.47 USB0_5VDC
J2.8 DVI_DATA1+ J2.28 n/a J2.48 USB0-
J2.9 DVI_DATA1- J2.29 n/a J2.49 USB0+
J2.10 POWER_BUTTON+ J2.30 n/a J2.50 USB0_GND
J2.11 POWER_BUTTON- J2.31 n/a J2.51 USB1_GND
J2.12 GND J2.32 ETH1_MDI0+ J2.52 GND
J2.13 DVI_5VDC J2.33 ETH1_MDI0- J2.53 USB1_5VDC
J2.14 GND J2.34 ETH1_MDI1+ J2.54 USB1-
J2.15 DVI_DATA0+ J2.35 ETH1_MDI1- J2.55 USB1+
J2.16 DVI_DATA0- J2.36 ETH1_MDI2+
J2.17 RESET_BUTTON+ J2.37 ETH1_MDI2-
J2.18 RESET_BUTTON- J2.38 ETH1_MDI3+
J2.19 +5VDC_STANDBY (*1) J2.39 ETH1_MDI3-
J2.20 GND J2.40 RS422_SER0_RXN

(*1) +5VDC_STANDBY limited to 0,2A
(*2) VBUS0, VBUS1: 0.5A for each voltage (0.8A max)

Connecteurs J3

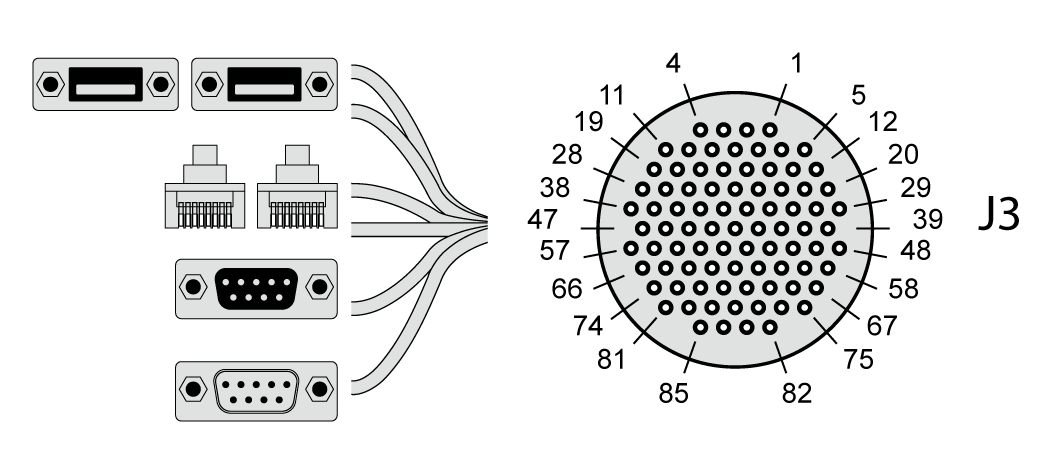

Les connecteurs J3 correspondent aux connectiques suivantes :
  • 2 ports USB 2.0,
  • 2 ports Ethernet RJ45 1Gbps,
  • 1 port série RS232,
  • 1 port série RS422.

Connectiques "Kit de connexion IT"

2 ports USB 2.0

Détail Pin Signal
USB n°1 J3.75 USB2_GND
J3.76 USB2-
J3.77 USB2+
J3.78 USB2_5VDC
USB n°2 J3.82 USB3_5VDC
J3.83 USB3+
J3.84 USB3-
J3.85 USB3_GND

1 port série RS232

  Pin Signal
J3.70 RS232_1_RX
J3.71 RS232_1_TX

2 ports Ethernet
RJ45 1Gbps

Détail Pin Signal
DMZ2 J3.1 ETH4_MDI0+
J3.2 ETH4_MDI0-
J3.3 ETH4_MDI1+
J3.4 ETH4_MDI1-
J3.11 ETH4_MDI2+
J3.10 ETH4_MDI2-
J3.9 ETH4_MDI3+
J3.8 ETH4_MDI3-
DMZ3 J3.31 ETH5_MDI0+
J3.32 ETH5_MDI0-
J3.33 ETH5_MDI1+
J3.34 ETH5_MDI1-
J3.35 ETH5_MDI2+
J3.36 ETH5_MDI2-
J3.37 ETH5_MDI3+
J3.38 ETH5_MDI3-

1 port série RS422

  Pin Signal
J3.73 RS422_1_RX+
J3.74 RS422_1_RX-
J3.80 RS422_1_TX-
J3.81 RS422_1_TX+

Synthèse des connecteurs J3

Pin Signal Pin Signal Pin Signal Pin Signal Pin Signal
J3.1 ETH4_MDI0+ J3.21 n/a J3.41 n/a J3.61 LINE_OUTn/a_L J3.81 RS422_1_TX+
J3.2 ETH4_MDI0- J3.22 n/a J3.42 n/a J3.62 LINE_OUTn/a_GND J3.82 USB3_5VDC
J3.3 ETH4_MDI1+ J3.23 n/a J3.43 n/a J3.63 LINE_OUTn/a_R J3.83 USB3+
J3.4 ETH4_MDI1- J3.24 n/a J3.44 n/a J3.64 n/a J3.84 USB3-
J3.5 n/a J3.25 n/a J3.45 n/a J3.65 n/a J3.85 USB3_GND
J3.6 n/a J3.26 n/a J3.46 n/a J3.66 n/a
J3.7 n/a J3.27 n/a J3.47 n/a J3.67 n/a
J3.8 ETH4_MDI3- J3.28 n/a J3.48 n/a J3.68 LINE_IN_L
J3.9 ETH4_MDI3+ J3.29 n/a J3.49 n/a J3.69 LINE_IN_R
J3.10 ETH4_MDI2- J3.30 n/a J3.50 n/a J3.70 RS232_1_RX
J3.11 ETH4_MDI2+ J3.31 ETH5_MDI0+ J3.51 n/a J3.71 RS232_1_TX
J3.12 n/a J3.32 ETH5_MDI0- J3.52 n/a J3.72 GND
J3.13 n/a J3.33 ETH5_MDI1+ J3.53 n/a J3.73 RS422_1_RX+
J3.14 n/a J3.34 ETH5_MDI1- J3.54 n/a J3.74 RS422_1_RX-
J3.15 n/a J3.35 ETH5_MDI2+ J3.55 n/a J3.75 USB2_GND
J3.16 n/a J3.36 ETH5_MDI2- J3.56 n/a J3.76 USB2-
J3.17 n/a J3.37 ETH5_MDI3+ J3.57 n/a J3.77 USB2+
J3.18 n/a J3.38 ETH5_MDI3- J3.58 n/a J3.78 USB2_5VDC
J3.19 n/a J3.39 n/a J3.59 GND J3.79 GND
J3.20 n/a J3.40 n/a J3.60 LINE_IN_Cn/aOM J3.80 RS422_1_TX-

Connecteurs J4

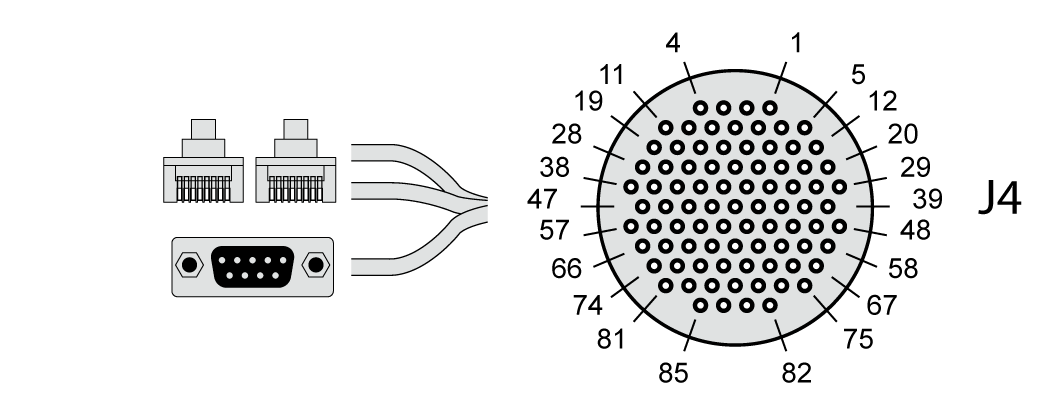

Les connecteurs J4 correspondent aux connectiques suivantes :
  • 2 ports Ethernet RJ45 1Gbps,
  • 1 port COM GPIO.

Connectiques "Kit de connexion IT"

2 ports Ethernet
RJ45 1Gbps

Détail Pin Signal
IN 2 J4.1 ETH2_MDI0+
J4.2 ETH2_MDI0-
J4.3 ETH2_MDI1+
J4.4 ETH2_MDI1-
J4.11 ETH2_MDI2+
J4.10 ETH2_MDI2-
J4.9 ETH2_MDI3+
J4.8 ETH2_MDI3-
DMZ1 J4.55 ETH3_MDI0+
J4.56 ETH3_MDI0-
J4.57 ETH3_MDI1+
J4.66 ETH3_MDI1-
J4.65 ETH3_MDI2+
J4.64 ETH3_MDI2-
J4.63 ETH3_MDI3+
J4.62 ETH3_MDI3-

1 port COM GPIO

  Pin Signal
J4.20 GPO3
J4.29 GPO2
J4.48 GPI2
J4.58 GPI3

Synthèse des connecteurs J4

Pin Signal Pin Signal Pin Signal Pin Signal Pin Signal
4.1 ETH2_MDI0+ J4.21 n/a J4.41 n/a J4.61 n/a J4.81 n/a
J4.2 ETH2_MDI0- J4.22 n/a J4.42 n/a J4.62 ETH3_MDI3- J4.82 n/a
J4.3 ETH2_MDI1+ J4.23 n/a J4.43 n/a J4.63 ETH3_MDI3+ J4.83 n/a
J4.4 ETH2_MDI1- J4.24 n/a J4.44 n/a J4.64 ETH3_MDI2- J4.84 n/a
J4.5 n/a J4.25 n/a J4.45 n/a J4.65 ETH3_MDI2+ J4.85 n/a
J4.6 n/a J4.26 n/a J4.46 n/a J4.66 ETH3_MDI1-
J4.7 n/a J4.27 n/a J4.47 n/a J4.67 n/a
J4.8 ETH2_MDI3- J4.28 n/a J4.48 GPI2 J4.68 n/a
J4.9 ETH2_MDI3+ J4.29 GPO2 J4.49 n/a J4.69 n/a
J4.10 ETH2_MDI2- J4.30 n/a J4.50 n/a J4.70 n/a
J4.11 ETH2_MDI2+ J4.31 n/a J4.51 n/a J4.71 n/a
J4.12 n/a J4.32 n/a J4.52 n/a J4.72 n/a
J4.13 n/a J4.33 n/a J4.53 n/a J4.73 n/a
J4.14 n/a J4.34 n/a J4.54 n/a J4.74 n/a
J4.15 n/a J4.35 n/a J4.55 ETH3_MDI0+ J4.75 n/a
J4.16 n/a J4.36 n/a J4.56 ETH3_MDI0- J4.76 n/a
J4.17 n/a J4.37 n/a J4.57 ETH3_MDI1+ J4.77 n/a
J4.18 n/a J4.38 n/a J4.58 GPI3 J4.78 n/a
J4.19 n/a J4.39 GND J4.59 n/a J4.79 n/a
J4.20 GPO3 J4.40 n/a J4.60 n/a J4.80 n/a

Synthèse des connecteurs Ethernet RJ45

En résumé, les ports ethernet RJ45 sont répartis comme suit :


Port Signal Pin Port Signal Pin
OUT 1 ETH1_MDI0+ J2.32 IN 2 ETH2_MDI0+ J4.1
ETH1_MDI0- J2.33 ETH2_MDI0- J4.2
ETH1_MDI1+ J2.34 ETH2_MDI1+ J4.3
ETH1_MDI1- J2.35 ETH2_MDI1- J4.4
ETH1_MDI2+ J2.36 ETH2_MDI2+ J4.11
ETH1_MDI2- J2.37 ETH2_MDI2- J4.10
ETH1_MDI3+ J2.38 ETH2_MDI3+ J4.9
ETH1_MDI3- J2.39 ETH2_MDI3- J4.8

Port Signal Pin Port Signal Pin Port   Pin
DMZ1 ETH3_MDI0+ J4.55 DMZ2 ETH4_MDI0+ J3.1 DMZ3 ETH5_MDI0+ J3.31
ETH3_MDI0- J4.56 ETH4_MDI0- J3.2 ETH5_MDI0- J3.32
ETH3_MDI1+ J4.57 ETH4_MDI1+ J3.3 ETH5_MDI1+ J3.33
ETH3_MDI1- J4.66 ETH4_MDI1- J3.4 ETH5_MDI1- J3.34
ETH3_MDI2+ J4.65 ETH4_MDI2+ J3.11 ETH5_MDI2+ J3.35
ETH3_MDI2- J4.64 ETH4_MDI2- J3.10 ETH5_MDI2- J3.36
ETH3_MDI3+ J4.63 ETH4_MDI3+ J3.9 ETH5_MDI3+ J3.37
ETH3_MDI3- J4.62 ETH4_MDI3- J3.8 ETH5_MDI3- J3.38
