Installing the firewall

Take note of the registration password and serial number indicated on the underside of the firewall. You will need them during installation.

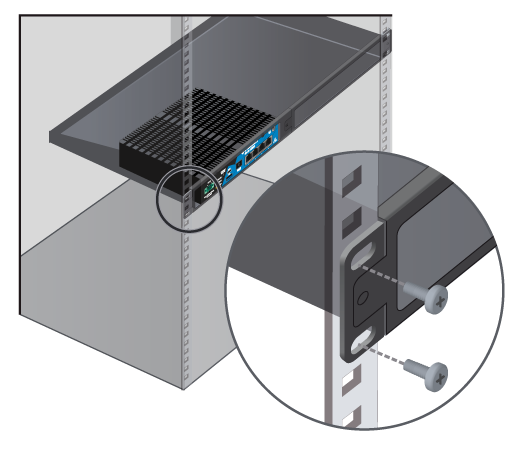

Installing firewalls on a shelf

Place the firewall horizontally on its non-slip rubber feet, or install it in a racking bay by using a rackable shelf.

Refer to the section Installation in a 19" cabinet and rack in the SNS range presentation and installation guide for more information.

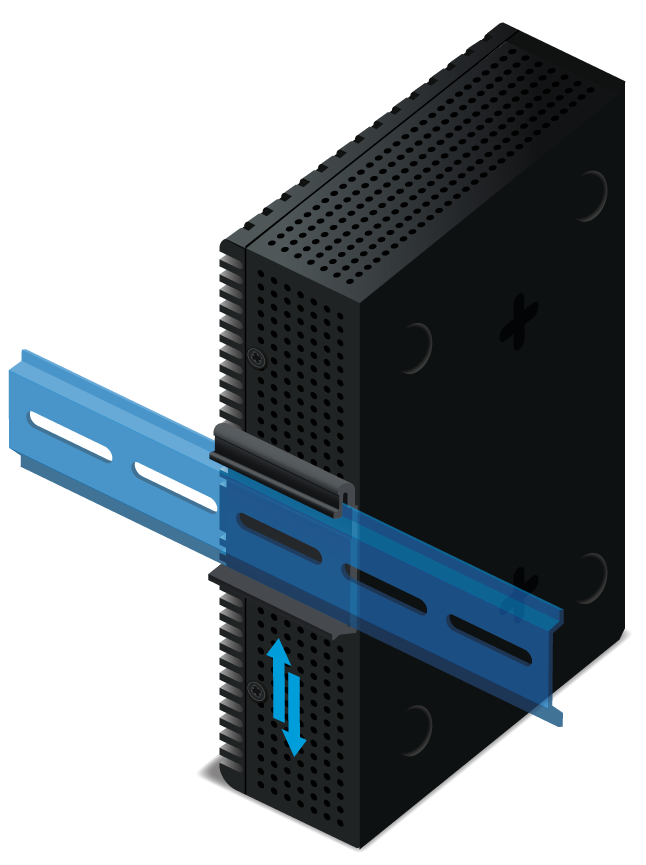

Installing the firewall on DIN rails

Install the firewall by using the mounting system provided in the kit. DIN rails must be screwed onto the firewall in advance.

Refer to the section Installation in a 19" cabinet and rack in the SNS range presentation and installation guide for more information.

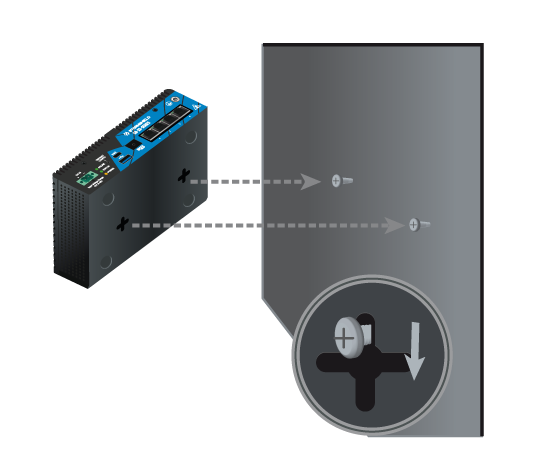

Fastening the firewall against a wall

Refer to the section Installation in a 19" cabinet and rack in the SNS range presentation and installation guide for more information.
