SNi40 model

In order to ensure service continuity in an industrial setting, the SNi40 firewall is equipped with a hardware bypass function, which when enabled, allows network traffic to pass through in the event of a power outage or appliance breakdown.

This feature, available from version 3.0 onwards, is disabled by default. If you want to allow bypass to be enabled, high availability must not be configured on the appliance.

The SNi40 multi-function firewall is fanless.

This appliance is equipped with a 24 VDC redundant power supply; the 6-pole screw terminal connector provided allows connecting to 2 independent sources of power.

Connectors and LEDs

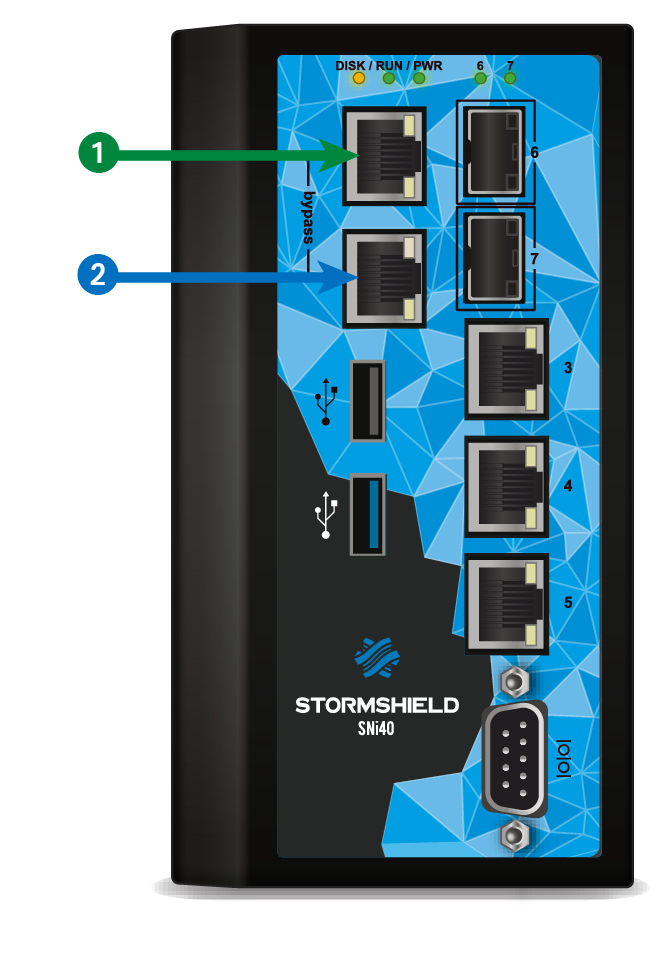

1 OUT interface 2 IN interface   The SNi40 model holds 5 1Gbe Ethernet interfaces and 2 SFP sockets for adding 1Gbe Ethernet transceivers. Specifications of Stormshield Network-approved transceivers are set out in the sections Optional Ethernet Transceivers and Fiber Ethernet connectors.

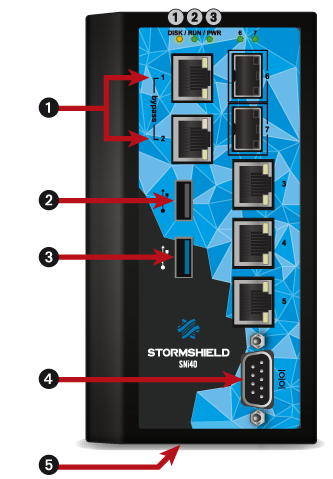

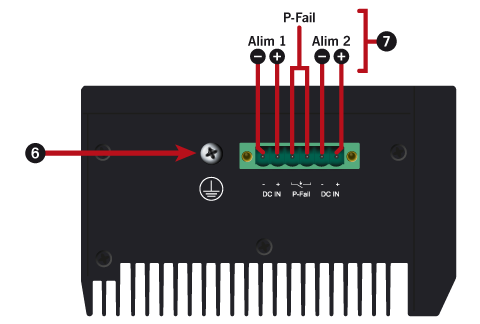

1SSD activity LED (yellow) 2Run LED (green) 3Power LED (green) 1 Two network ports dedicated to Ethernet Bypass. 2 The USB 2.0 port can be used for secure configurations or upgrades. You can also plug a USB key or an approved USB modem into it. 3 The USB 3.0 port can be used for secure configurations or upgrades. You can also plug a USB key or an approved USB modem into it. 4 The serial port enables access to the product in console mode; the user can connect to the firewall directly from a computer. The default baud rate on this model is 115 200 baud (8N1). 5 The Reset button (underside): resets the firewall’s electrical supply. 6 Connection of the protective earth circuit. 7 This 6-pole screw terminal connector enables connection to a 24VDC redundant power supply and a P-Fail relay.

Redundant power supply and P-Fail (Power Failure) relay

REMINDER
Before plugging any equipment into a DC power supply module, read the security rules carefully and follow them.

Both electrical power supplies can be connected to the SNi40 to provide a redundant power source. Connect the power supplies according to the diagram shown in Connectors and LEDs

A P-Fail relay makes it possible to detect an abnormal status on a power supply. You can connect this relay to a sound or light alarm, such as a buzzer or a LED, equipped with an independent power supply. To do so, connect the external power supply of the alarm to the third and fourth pins. If both power supplies run at the same time, the alarm will be short-circuited. If either power supply is defective, the alarm will go off. The recommended intensity for this relay is 30 VDC, 2A or 60W.
