Optional Ethernet transceivers

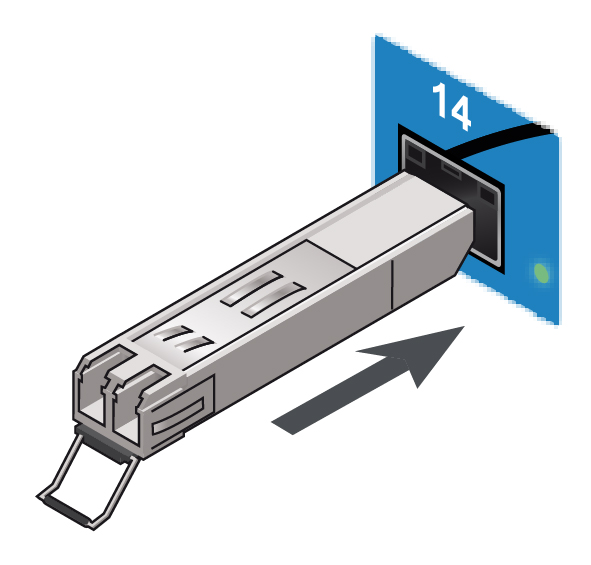

Ethernet fiber transceivers (SN710 and upwards, SNi20 and SNi40)
|
For 1 Gbps transmission, two types of transceivers are available according to the length of the cable and the type of fiber used:
For 10 Gbps transmission, two types of transceivers are available according to the length of the cable and the type of fiber used:
For 25 Gbps transmission, two types of transceivers are available according to the length of the cable and the type of fiber used:
For 40 Gbps transmission, two types of transceivers are available according to the length of the cable and the type of fiber used:
|
|
NOTE
Only LC fiber optic connectors are supported (or 1x12 MPO for QSFP+ SR4 and SFP28 SR).
Ethernet copper transceivers (SN710 and upwards, SNi20 and SNi40)
For 1 Gbps transmissions, such RJ45 over SFP transceivers (1000/100/10Base-T) require copper Ethernet RJ45 cables. These must be Category 5e cables, for running in 10 Mbps, 100 Mbps or 1 Gbps. Check the compatibility of your devices.
Stormshield Network-approved Ethernet transceivers
| Cable/fiber type |
Color of extraction lever/Usual color of connection plug |
Wavelength |
Typical maximum distance supported* |
SN-S-Series-220 SN-S-Series-320 SNi20 SNi40 |
SN710 SN910 SN-M-Series-520 SN-M-Series-720 SN-M-Series-920 SN1100 |
SN2100 SN3100 |
SN-L-Series-2200 SN-L-Series-3200 SN6100 SN-XL-Series-5200 SN-XL-Series-6200 |
||
| FIBER CONNECTOR | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1Gbe SFP |
Base T | multimode | black/orange |
850nm | 550m |
• |
• |
• |
• |
| SFP 1000Base-SX | multimode | black/orange |
850nm | 550m |
• |
• |
• |
• |
|
| SFP 1000Base-LX Ethernet 1000Base-LX |
single mode | blue/yellow |
1310nm. | 10km |
• |
• |
• |
• |
|
| 10Gbe SFP+ | Base T | multimode | beige/orange |
850nm | 300m at 10Gbps 550m at 1Gbps |
• |
• |
• |
|
| SFP+ 10GBASE-SR/ 1000Base-SX Ethernet 10GBASE-SR/ 1000Base-SX |
multimode | beige/orange |
850nm | 300m at 10Gbps 550m at 1Gbps |
• |
• |
• |
||
| SFP+ 10GBASE-LR/ 1000Base-LX Ethernet 10GBASE-LR /2500Base-LX |
single mode | blue/yellow |
1310nm | 10km |
• |
• |
• |
||
| 25Gbe SFP28 | SFP28 25GBASE-SR/ 10GBASE-SR Ethernet 25GBASE-SR/ 10GBASE-SR |
multimode with 1x12 MPO female connector |
beige/orange |
850nm | 100m |
• |
• |
||
| SFP28 25GBASE-LR
Ethernet 25GBASE-LR |
single mode | blue/yellow |
1310nm | 10km |
• |
• |
|||
| 40Gbe QSFP+ | QSFP+ 40GBASE-SR4
Ethernet 40GBASE-SR4 |
multimode with 1x12 MPO female connector | beige/- |
850nm | 150m with multi-mode fiber |
• |
• |
||
| QSFP+ 40GBASE-LR
Ethernet 40GBASE-LR4 |
single mode | blue/yellow |
1310nm | 10km with single-mode fiber |
• |
• |
|||
| COPPER CONNECTOR | |||||||||
| 1Gbe SFP |
RJ45 over SFP 1000/100/10Base-T | Category 5e RJ45 Ethernet cable | - /- |
100m |
• |
• |
• |
• |
|
