Reading logs

Logs can be read in the web administration interface or directly in files stored on the hard disk or SD card. If logs are sent to a Syslog server or through an IPFix collector, they can also be read in these programs.

In a high availability (HA) cluster, logs are not replicated on all nodes. The active firewall writes logs to its hard disk. If the firewall becomes the passive firewall, the other active firewall will continue writing logs. As a result, neither firewall in the cluster contains all logs, and the web administration interface displays only logs found on the firewall to which it is connected. To read logs more easily in a HA setup, send them to a Syslog server.

In line with the General Data Protection Regulation (GDPR), access to firewall logs is restricted by default for all administrators. The admin super administrator can easily access full logs but other administrators must request a temporary access code. Every time a request is submitted for full access to logs, a log will be generated. For further information, refer to the Technical note Complying with privacy regulations.

  1. Click on Audit logs in the web administration interface.
  2. In the menu, select Logs.
  3. Select the logs you want to read.
    Logs are displayed in chronological order, the first being the most recent. Only logs from the last hour are displayed by default, but the time range can be changed by clicking on the drop-down list.
  4. Click on Actions > Expand all elements if you wish to display all available columns.
  5. To filter logs, enter text in the Search field or click on Advanced search, then Add a criterion to combine various search criteria.

For further information on searches and displaying logs, refer to Views and Interactions in the User guide.

  • Log in to the firewall in SSH to read logs stored in the /log folder. These logs consist of the following files:



l_alarm Events relating to intrusion prevention functions (IPS) and those logged with a minor or major alarm level in the filter policy.
l_auth Events relating to user authentication on the firewall
l_connection Events relating to TCP/UDP connections to and from the firewall, which have not been analyzed by an application plugin.
l_count Statistics regarding the number of times a rule has been executed. Such logs are not generated by default. For further information, see Adding logs to filter rules.
l_date Events relating to time changes on the firewall.
l_filter Events relating to filter and/or NAT rules. Such logs are not generated by default. For further information, see Adding logs to filter rules.
l_filterstat Statistics regarding the use of the firewall and its resources.
l_ftp Events relating to connections going through the FTP proxy.
l_monitor Statistics for the creation of performance graphs and security reports (web administration interface and Stormshield Network Real-Time Monitor).
l_plugin Events relating to processes carried out by application plugins (FTP, SIP, etc.).
l_pop3 Events relating to connections going through the POP3 proxy.
l_pvm Events relating to the option Stormshield Network Vulnerability Manager.
l_sandboxing Events relating to file sandboxing if the subscription for this option has been activated.
l_server Events relating to the administration of the firewall
l_smtp Events relating to connections going through the SMTP proxy.
l_ssl Events relating to connections going through the SSL proxy.
l_system Events directly relating to the system (shutdown/reboot of the firewall, system error, service operation, etc).
l_vpn Events relating to the IPsec VPN tunnel negotiation phase.
l_web Events relating to connections going through the HTTP proxy.
l_xvpn Events relating to the setup of an SSL VPN tunnel (tunnel or portal mode).

For more information on the various fields in these files, refer to the technical note Understanding audit logs.

As soon as a log file exceeds 20 MB, it will be closed to make way for another. The closed file can be found in the /log file under a new name.

Archive names

Closed log files are named according to the following structure:

  • Type of log file (e.g.: l_filter, l_alarm, etc.),
  • An 8-digit index number (starts from 0),
  • Creation date: GMT date of the first log contained in the file,
  • Closing date: GMT date of the last log contained in the file,
  • The number of logs stored in the file.

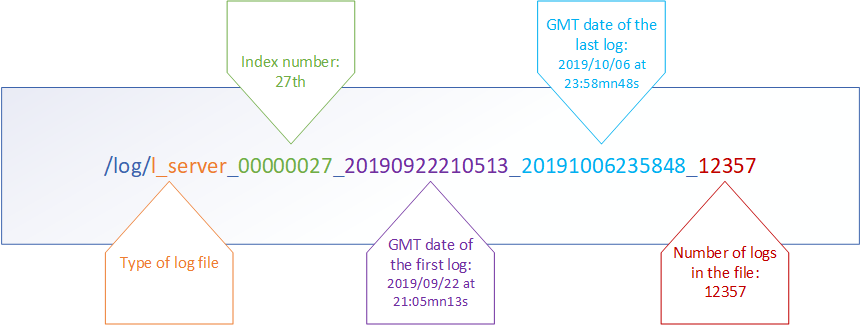

Example:

File indexation (managed incrementally and starting from 0) makes it possible to not have to rely only on creation or closing dates, as these dates may be distorted when the time is changed on the firewall.

Managing log storage

By default, when the storage space reserved for a log type reaches full capacity, the oldest archive file will be erased to free up space.

Two other courses of action are available, and can be enabled for each type of log file using CLI/serverd CONFIG LOG commands:

  • Logs stop being generated once the dedicated space reaches full capacity,
  • The firewall shuts down once the dedicated space reaches full capacity.

For more information on the syntax of these commands, refer to the CLI SERVERD Commands Reference Guide.

On firewalls that use version 3 of SNS in a version lower than 3.8.0, log generation can be suspended in all spaces in a single operation. To do so, go to the web administration interface, in the Configuration > Notifications > Logs - Syslog - IPFIX module, Local storage tab, select “Pause log writing” as the Action required if storage device is saturated.
