Simple configurations

RIP

The version supported is RIPv2.

Below is the configuration “RIP_simple”.

We will configure a default route and a static route to 100.100.100.100/32:



RIPv2 is configured by specifying “multicast” as the RIP mode associated with the interface “em0”. Requests by neighbors to send tables will be honored.


router id 192.168.97.219;
protocol kernel {
  persist;# Don't remove routes on bird shutdown
  scan time 20;# Scan kernel routing table every 20 seconds
  export all;# Default is export none
  learn; # Learn all alien routes from the kernel
  preference 254; # Protect kernel routes with a high preference
}
protocol device {
  scan time 10; # Scan interfaces every 10 seconds
}
filter ripexport {
  if (net = 0.0.0.0/0) || (net = 100.100.100.100/32)
  then accept;
  else reject;
}
protocol rip MyRIP {
  debug all;
  interface "em0" { mode multicast; };
 mode multicast;
 authentication none;
 };
  honor always;
  authentication none;
  import all;
  export filter ripexport;
}




The state of the protocol instance:


bird> show protocols all MyRIP
name proto table state since info
MyRIP RIP master up 10:08:56
Preference: 120
Input filter: ACCEPT
Output filter: ripexport
Routes: 4 imported, 5 exported, 3 preferred
Route change stats:received rejected filtered ignored accepted
Import updates:147 0 0 140 7
Import withdraws: 00---00
Export updates:1103---8
Export withdraws:0---------0
bird>




Learned routes:


bird> show route primary protocol MyRIP
192.168.97.0/24via 10.200.45.250 on eth0 [MyRIP 10:29:19] ! (120/2)
1.1.9.0/24via 10.200.45.250 on eth0 [MyRIP 10:29:19] * (120/2)
1.1.8.0/24via 10.200.45.250 on eth0 [MyRIP 10:29:19] * (120/2)



Below are the routes received by the neighbor. Note that the default route has been received. Ordinarily, other routers on the market would reject the export of this route. However, in this case, it has to be filtered explicitly.


bird> show route primary protocol MyRIP
0.0.0.0/0 via 192.168.97.219 on eth0 [MyRIP 10:36] * (120/2)
100.100.100.100/32 via 192.168.97.101 on eth0 [MyRIP 10:36 from 192.168.97.219] * (120/2)

OSPF

The versions supported are OSPFv2 for IPv4 and OSPFv3 for IPv6.

Below is the configuration “OSPF_simple”.

It consists of deploying an area 0 on a LAN where a possible neighbor is explicitly indicated. All routes are imported from OSPF and redistributed in OSPF. The route of the sub-network directly linked to the interface em3 (172.16.0.0/24) and the default route are redistributed in OSPF.


router id 192.168.97.219;
protocol kernel {
  persist;# Don't remove routes on bird shutdown
  scan time 20;# Scan kernel routing table every 20 seconds
  export all;# Default is export none
  learn; # Learn all alien routes from the kernel
  preference 254; # Protect kernel routes with a high preference
}
protocol device {
  scan time 10; # Scan interfaces every 10 seconds
}
protocol direct {
  interface "em3";
}
filter ospfexport {
  if (source = RTS_DEVICE) || (net = 0.0.0.0/0)
  then accept;
  else reject;
}
protocol ospf MyOSPF {
  export filter ospfexport;
  import all;
  area 0.0.0.0 {
  stub no;
 interface "em4" {
   type broadcast;
   neighbors {
   192.168.97.103 eligible;
   };
  };
  };
}




NOTE
You are also advised to set the parameter "priority 0" in the interface section of the OSPF node configuration in order to disable the firewall's role in elections for Designated Router / Backup Designated Router roles.



The following command indicates that the neighborhood has been established (indicated by the state “full”).

The neighbor has been declared a “Designated Router” (indicated by the state “dr”)


bird> show ospf neighbors
MyOSPF:
Router IDPri State DTime Interface

Router IP

192.168.97.1031full/dr00:34em4 192.168.97.103

bird>





Routes received:


bird> show route protocol MyOSPF
3.3.3.3/32 via 192.168.97.103 on em4 [MyOSPF 16:17:38] * E2 (150/10/10000) [192.168.97.103]
192.168.97.0/24 dev em4 [MyOSPF 16:15:43] * I (150/10) [192.168.97.219]
bird>



The OSPF topology can be displayed:


bird> show ospf topology
area 0.0.0.0
 router 192.168.97.103
  distance 10
  network 192.168.97.0/24 metric 10
 router 192.168.97.219
  distance 0
  network 192.168.97.0/24 metric 10
 network 192.168.97.0/24
  dr 192.168.97.103
  distance 10
  router 192.168.97.103
  router 192.168.97.219

bird>





As well as the LSA database:


bird> show ospf lsadb
Global
Type LS ID Router Age Sequence Checksum
0005 3.3.3.3 192.168.97.103501 8000000a ec8a
0005 172.16.0.255 192.168.97.2191150 80000001 81b6
0005 0.0.0.0 192.168.97.2191150 80000001 37f1
Area

0.0.0.0


Type LS ID Router Age Sequence Checksum
0001 192.168.97.103192.168.97.103455 8000000a 2254
0002 192.168.97.103 192.168.97.103456 80000006 9384
0001 192.168.97.219192.168.97.2191144 8000041b 0bf8

bird>



NOTE
Note that the type of LSA is shown on the left whereas it is generally used as a horizontal delimiter by the usual display standards.

BGP

“BGP_simple” configuration

The version supported is BGPv4 for IPv4 and IPv6.

Below is the configuration “BGP _simple”.

The configuration “BGP_simple” is implemented as follows:


router id 192.168.97.219;
protocol kernel {
 persist; # Don't remove routes on bird shutdown
 scan time 20; # Scan kernel routing table every 20 seconds
 export all; # Default is export none
 learn; # Learn all alien routes from the kernel
 preference 254; # Protect kernel routes with a high preference
}
protocol device {
 scan time 10; # Scan interfaces every 10 seconds
}
protocol direct {
 interface "em3";
}
protocol bgp router1 {
 description "My 1st BGP uplink";
 local as 65065;
 neighbor 100.100.100.100 as 65001;
 multihop 5;
 hold time 180;
 keepalive time 60;
 export where source = RTS_DEVICE;
 import all;
 default bgp_local_pref 100;
 source address 200.200.200.200;
}


Explanations

Unlike most routers on the market, the local AS has to be specified for each BGP instance.

According to the best practices, this eBGP session is set up between loopback interfaces and not physical interfaces. It is therefore necessary to configure the IP of the local loopback in question (200.200.200.200/32), to specify this address as the source and a static route to the neighbor’s loopback.


Loopback virtual interfaces

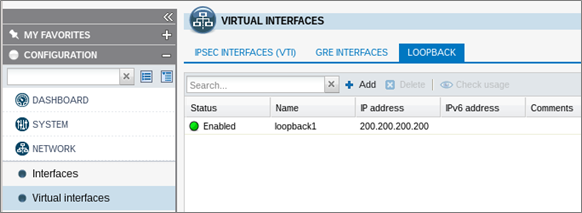

In version 2, the web administration interface allows configuring loopback interfaces via the Virtual interfaces module, in the Loopback tab.

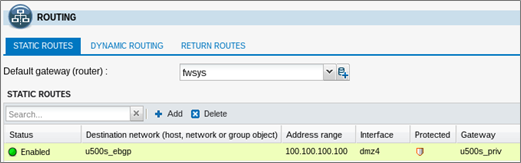

It is advisable to declare the static route to the remote loopback on the firewall outside the Bird configuration via the Routing module in the Static routes tab, in order to prevent BGP traffic from being blocked by “IP address spoofing” alarms.



Once again, we will select only the sub-network 172.16.0.0/24 directly linked to the interface em3 as the route to announce to our neighbors.

Here, an anonymous export filter has been defined directly in the “export” instruction, with the keyword "where". This export filter selects routes with RTS_DEVICE as their source, meaning routes obtained by the “direct” pseudo-protocol.

The value of the hold-time has been specified as 180s, the usual market value. BIRD implements by default 240s. The value of the keepalive duration does not need to be specified (calculated at 1/3 of the hold-time) but we are mentioning it explicitly for clarity. Likewise for the default local-preference.

The command “show protocols” below confirms that the session is indeed working.


bird> show protocols router1
name proto table state since info
router1BGP master up 12:47Established

bird>





The neighbor has received the routes:


bird> show route protocol router1
100.100.100.100/32via 192.168.97.101 on em0 [router1 13:09 from 100.100.100.100]
(100/?) [AS65001?]
2.2.2.0/24via 192.168.97.101on em0 [router1 13:09 from 100.100.100.100]
*(100/?)[AS65001?]
2.2.4.0/24via 192.168.97.101 on em0 [router1 13:09 from 100.100.100.100]
*(100/?)[AS65001?]
bird>




On the BGP neighbor, the route announced and released by the filter is received. As for the route 1.1.1.1/32, it has been blocked.


@router1:~$ show ip bgp
BGP table version is 0, local router ID is 2.2.2.2
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
 r RIB-failure,S Stale,R Removed
Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path
*> 2.2.2.0/240.0.0.0132768?
*> 2.2.4.0/24 0.0.0.0132768?
*> 100.100.100.100/320.0.0.0 132768?
*> 172.16.0.0/24200.200.200.200 065065 i
*> 192.168.97.0 0.0.0.0132768?
Total number of prefixes 5
@router1:~$


Authentication

TCP-MD5 authentication can be set up between BGP routers in BIRD.

This method allows protecting BGP sessions by authenticating frames in the TCP header in compliance with RFC2385.

This is represented by the addition of a "password" directive"password" and "setkey no" directives in the configuration of the BGP router in the files /usr/Firewall/ConfigFiles/Bird/bird.conf (dynamic routing of IPv4 packets) and /usr/Firewall/ConfigFiles/Bird/bird6.conf (dynamic routing of IPv6 packets). For example:


protocol bgp
{
  local as 65065;
  neighbor 100.100.100.100 as 65001;
  export where source = RTS_DEVICE;
  import all;
  source address 200.200.200.200 ;
  password "very_secret";
  setkey no;

}



Next, this SA (Security Association) needs to be declared in the file ConfigFiles/Bird/global in the section [BGPAuth]. This section groups IPv4 and IPv6 security associations.

Each SA is described in it in the form of a line with the following structure (fields separated by commas without spacing):


[BGPAuth]
IP_local_router,IP_remote_router1,password_1
IP_local_router,IP_remote_router2,password_2



In our example:


[BGPAuth]
100.100.100.100,200.200.200.200,very_secret

NOTE
Passwords must not contain spaces or the equal sign (‘=’).



The command showSAD allows viewing BGP SAs (as well as IPSec SAs). The field “tcp mode=any” indicates an SA relating to BGP authentication, while the field “A: tcp-md5” indicates the authentication type used.


showSAD
200.200.200.200 100.100.100.100
 tcp mode=any spi=4096(0x00001000) reqid=0(0x00000000)
 A: tcp-md5 32383738 35
 seq=0x00000000 replay=0 flags=0x00000040 state=mature
 created: Apr 22 12:59:49 2014 current: Apr 22 12:59:53 2014
 diff: 4(s) hard: 0(s) soft: 0(s)
 last: Apr 22 12:59:52 2014 hard: 0(s) soft: 0(s)
 current: 0(bytes) hard: 0(bytes) soft: 0(bytes)
 allocated: 1 hard: 0 soft: 0
 sadb_seq=1 pid=6330 refcnt=1
100.100.100.100 200.200.200.200
 tcp mode=any spi=4096(0x00001000) reqid=0(0x00000000)
 A: tcp-md5 32383738 35
 seq=0x00000000 replay=0 flags=0x00000040 state=mature
 created: Apr 22 12:59:49 2014 current: Apr 22 12:59:53 2014
 diff: 4(s) hard: 0(s) soft: 0(s)
 last: hard: 0(s) soft: 0(s)
 current: 0(bytes) hard: 0(bytes) soft: 0(bytes)


allocated: 0 hard: 0 soft: 0

 sadb_seq=0 pid=6330 refcnt=1
