SNi10

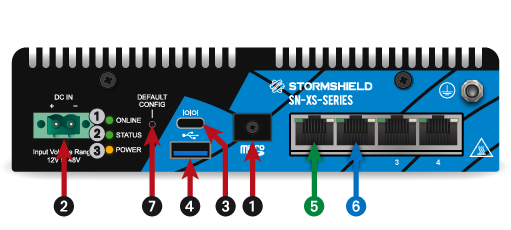

1: Location of the microSD card

2: Phoenix CI power socket

3: USB-C port console access

4: USB 3.0 port

5: OUT port

6: IN port

7: Button to reset the appliance to its factory settings (defaultconfig).


As the USB-C port (3) allows access to the SNS firewall in console mode, users can connect to it from a PC.

On the powered off SNS firewall:

  1. Insert the USB drive into the USB 3.0 port (4)
  2. Connect the USB-C port to a USB port on the computer, by using the cable provided with the SNS firewall.
  3. Launch a console emulator on the PC to access the SNS firewall (115,200 baud - 8N1).
  4. Power up the SNS firewall, which will immediately start running on the USB drive.
  5. Continue to the section Starting the restoration of the SNS firewall.
