SN910, SN1100, SN2100, SN3100, and SN6100

SN910
Front panel		Rear panel

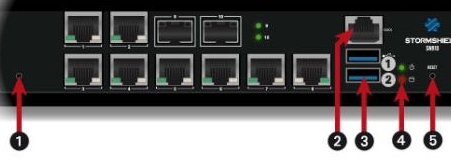

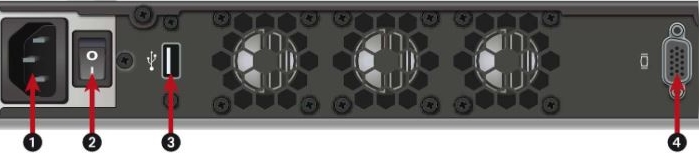

1: Button to reset the appliance to its factory settings (defaultconfig). 2: Serial port for access in console mode 3: USB 3.0 port 4: LEDs from top bottom: Power/SSD Activity 5: Reset button (electrically resets the firewall)		1: Mains socket 2: On/off switch 3: USB 2.0 port 4: VGA port

SN1100
Front panel		Rear panel

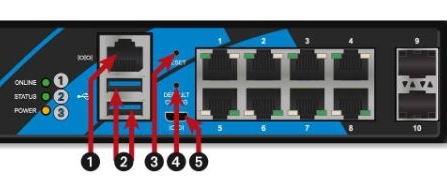

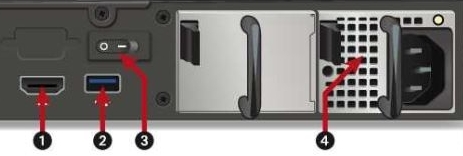

1: Serial port for access in console mode 2: USB 3.0 port 3: Reset button (electrically resets the firewall) 4: Button to reset the appliance to its factory settings (defaultconfig). 5: Micro USB port		1: HDMI port 2: USB 3.0 port 3: On/off switch 4: Mains socket

SN2100 and SN3100
Front panel		Rear panel

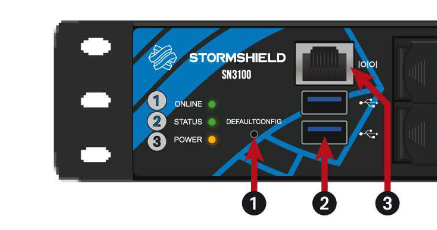

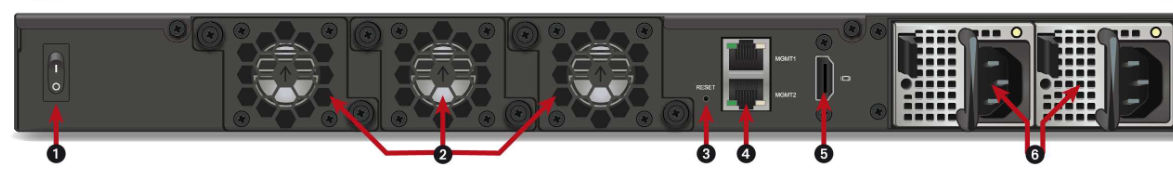

1: Button to reset the appliance to its factory settings (defaultconfig). 2: USB 3.0 port 3: Serial port for access in console mode		1: On/off switch 2: Fans 3: Reset button (electrically resets the firewall) 4: Management ports 5: HDMI port 6: Mains socket(s)



SN6100
Front panel		Rear panel

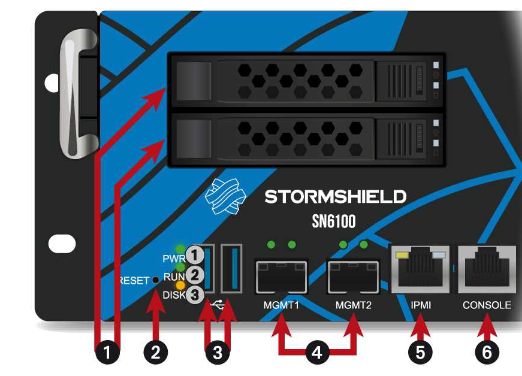

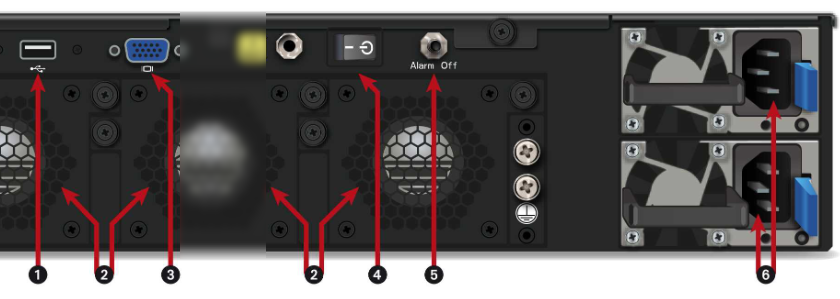

1: SSD racks 2: Reset button (electrically resets the firewall) 3: USB 3.0 port 4: Management ports 5: IPMI network port 6: Serial port for access in console mode		1: USB 2.0 port 2: Fans 3: VGA port 4: On/off switch 5: Alarm off button 6: Mains sockets

NOTE
For products equipped with an HDMI port, choose this port over the VGA port to prevent potential issues regarding display via the console.

On the powered off SNS firewall:

1. Plug the monitor into the VGA or HDMI port (SN1100, SN2100 and SN3100).
2. Plug the keyboard into a USB port.
3. Insert the USB drive into a USB socket.
4. Power up the SNS firewall.
5. Start it up by pressing the On/off button or switch.
6. Wait several minutes. The SNS firewall will start up on the USB drive.

The default baud rate on these models:

• SN910 is 9,600 baud (8N1),

• SN1100, SN2100, SN3100 and SN6100 is 115,200 baud (8N1).

Continue to the section Starting the restoration of the SNS firewall.
