SN160(W), SN210(W) and SN310

SN160(W)		SN210(W)		SN310

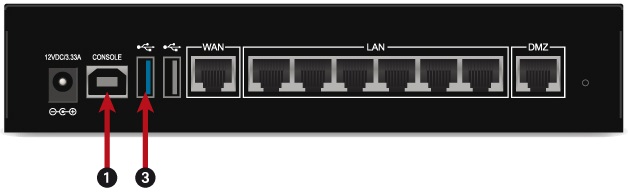

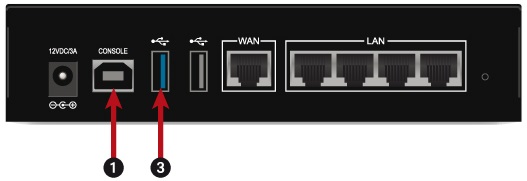

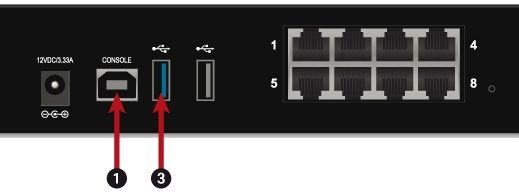

1: USB port for access in console mode 3: USB 3.0 port of USB drive.		1: USB port for access in console mode 3: USB 3.0 port of USB drive.		1: USB port for access in console mode 3: USB 3.0 port of USB drive.

As the USB port 1 allows access to the SNS firewall in console mode, users can connect to it from a PC. For this connection to work, a driver must be installed on the PC. Download it at http://www.ftdichip.com/Drivers/VCP.htm.

On the powered off SNS firewall:

1. Insert the USB drive into the USB 2.0 or 3.0 port on the SNS firewall.
2. Connect the USB 1 port to a USB port on the computer, by using the USB cable provided with the SNS firewall.
3. Launch a console emulator on the PC to access the SNS firewall (115,200 baud - 8N1).
4. Power up the SNS firewall, which will start up. The console emulator will then display:

SoC: Kirkwood 88F6281_A1DRAM: 512 MiB
WARNING: Caches not enabled
SF: Detected MX25L4005 with page size 64 KiB, total 512 KiB
In: serial
Out: serial
Err: serial
Net: egiga0, egiga1
switch port 4 disabled
88E6172 Initialized
Hit any key to stop autoboot: 3... 2... 1...

5. Immediately press any key to interrupt the automatic startup. You have 3 seconds to do so.

6. For these firewalls:
   • SN150: type run bootusb and confirm,
   • SN160(W), SN210(W) and SN310: type run bootusb3 and confirm.


   The SNS firewall will start up on the USB drive. Continue to the section Starting the restoration of the SNS firewall.
