Verifying tunnel status

Go to the Monitoring tab in the web administration interface of the SNS version 5 firewall.

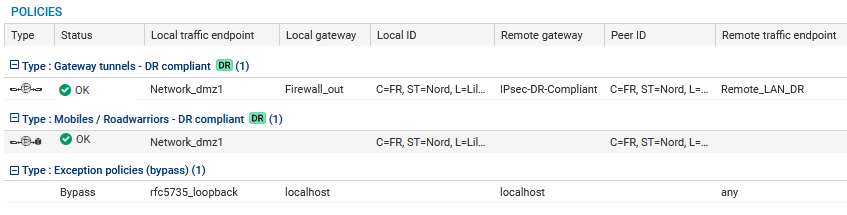

The Monitoring > IPsec VPN tunnels module allows you to view the status of tunnels in the active IPsec policy

The icon identifies tunnels that are fully compatible with DR mode:

When a tunnel is selected, the details of its IKE and IPsec security associations (SA) are shown.

Find out more on IPsec tunnel monitoring (SNS v4 user guide).
