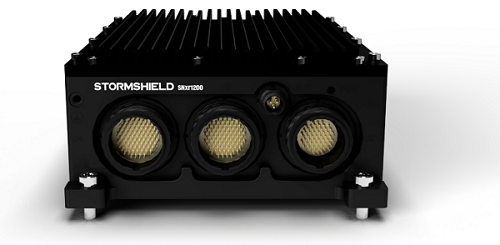

SNxr1200

Dismantling

1. Remove the warranty sticker.

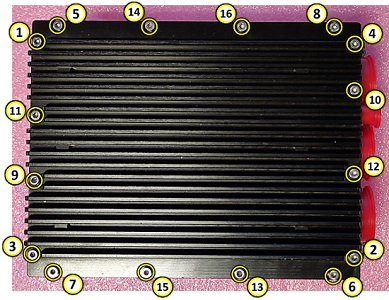

2. Using a 2.5mm-wide hex key, unscrew the 16 silver screws that hold the upper cover in place on the SNxr1200.

3. Carefully lift the upper cover of the SNxr1200.

4. Using a 2mm-wide hex key, unscrew the 4 screws that hold the cards in place.

5. Carefully remove the cards and turn over the whole drive to locate the M.2 SSD.



6. Using a 1.5mm-wide hex key, remove the screw that holds the M.2 SSD in place.
7. Remove the M.2 SSD.


Assembly

Re-assemble the product by following the same steps to dismantle it, in reverse order.
