SN-S-Series-220 and SN-S-Series-320
Dismantling
- Unscrew the 4 black countersunk screws with a Philips screwdriver.
One of these screws covers the warranty sticker. - Open the appliance.

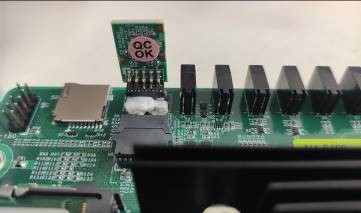

This operation will tear the warranty sticker. - Locate the storage module (eMMC):
- Remove the screw and unplug the eMMC.
Assembly
- Plug the eMMC back into the dedicated slot.
- Screw the eMMC fastening screw back in.
-
Put both parts of the appliance back together.
-
Close it up using the 4 screws.
