Starting up SN160, SN160W, SN210, SN210W, SN310, SN-XS-Series-170, SN-S-Series-220, SN-S-Series-320 and SNi10 models

Plug your firewall into its power supply; it will start automatically. Wait a few minutes for all 3 LEDs – Online, Status and Power (2 Power LEDs on SN-S-Series-220 and SN-S-Series-320 models) to light up.

NOTE
If necessary during startup, you can insert a USB key containing a configuration. Console mode will display the following message: “Please insert your USB token to continue”.

The lit Online LED will indicate the end of the product’s startup phase.

SN160 and SN160W models

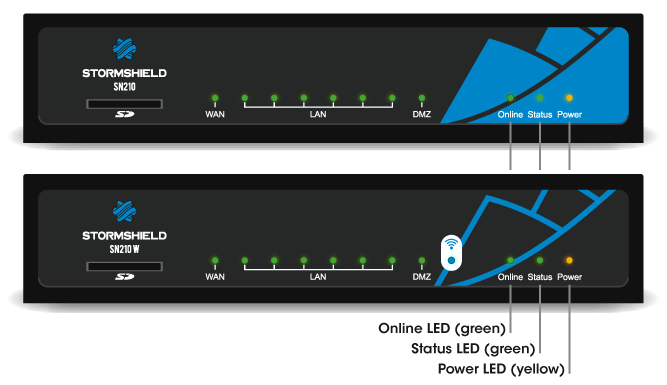

SN210 and SN210W models

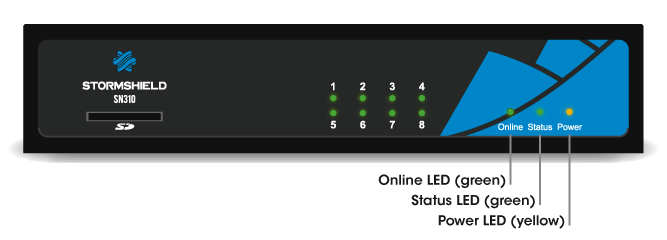

SN310 model

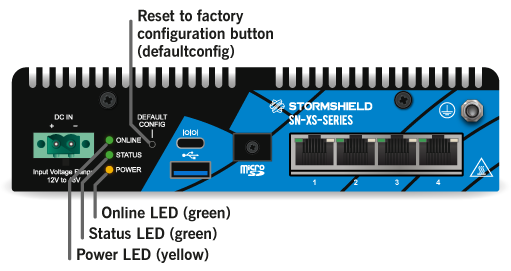

SN-XS-Series-170 and SNi10 models

SN-S-Series models
