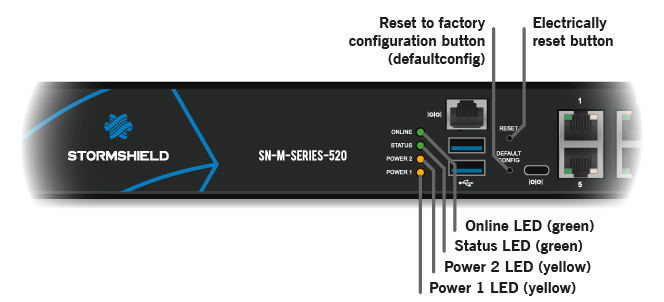

Starting SN-M-Series-520, SN-M-Series-720 and SN-M-Series-920 models

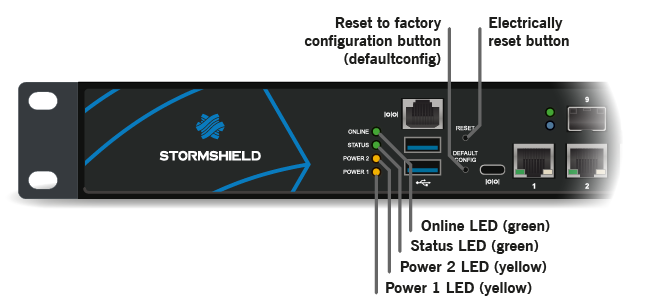

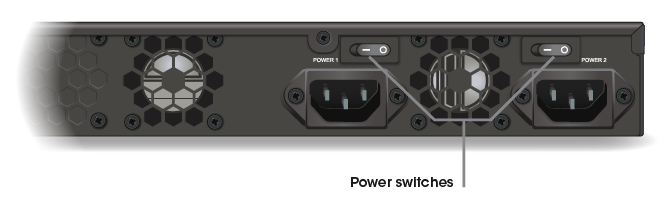

Plug your Stormshield Network firewall into the mains power supply. Ensure that both power supply switches are ON. Your firewall will then start running automatically, the Power LED will light up. Wait a few minutes for all 4 LEDs – Online, Status, Power 1 and Power 2 to light up.

NOTE
When you hear 8 consecutive beeps, you will be able to insert a USB key containing a configuration if necessary. Console mode will display the following message: “Please insert your USB token to continue”.

A beep indicates the end of the product’s startup sequence.
