All models except SN-L-Series-2200, SN-L-Series-3200, SN6100, SN-XL-Series-5200, SN-XL-Series-6200, SNi40 and SNxr1200

Use a pointed object to reset your firewall. A small pushbutton is accessible through a hole in the following locations:

  • On SN160, SN160W, SN210, SN210W and SN310 models, on the rear panel of the product, to the right of the Ethernet interfaces.
  • On SN510 models, on the front panel of the product, to the left of the Ethernet interfaces.
  • On SN710 and SN910 models, on the front panel of the product, between the extension module slot and the Ethernet interfaces.
  • On SN-M-Series-720, SN-M-Series-920 and SN1100 models, on the front panel of the product, between the USB ports and the Ethernet interfaces,

  • On SN2100 and SN3100 models, on the front panel of the product, between the LEDs and USB ports,
  • On SN-XS-Series-170, SNi10 and SNi20 models, on the front panel of the product, to the right above the LEDs.

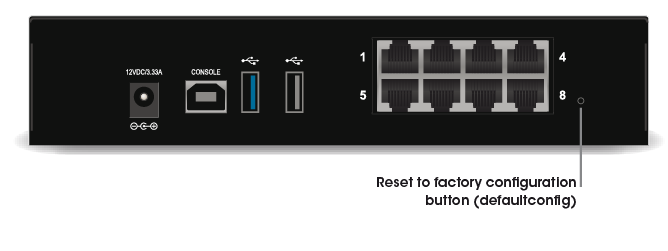

SN160 and SN160W models

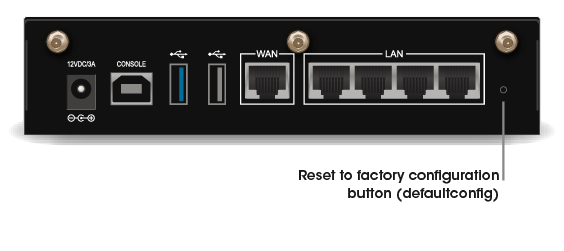

SN210 and SN210W models

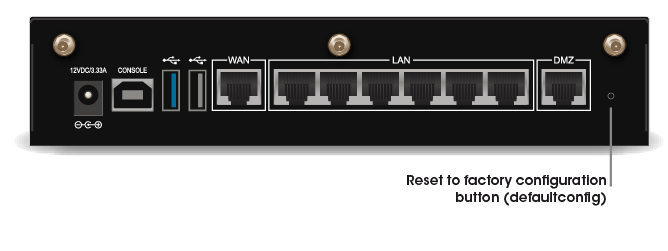

SN310 model

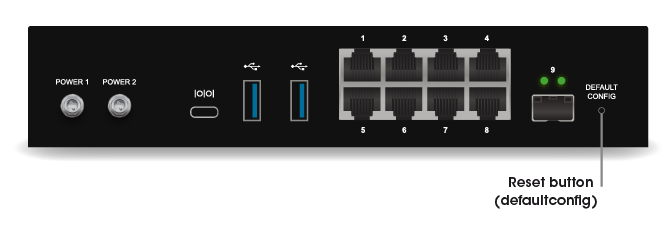

SN-S-Series-220 and SN-S-Series-320
SN510 and SN710 models

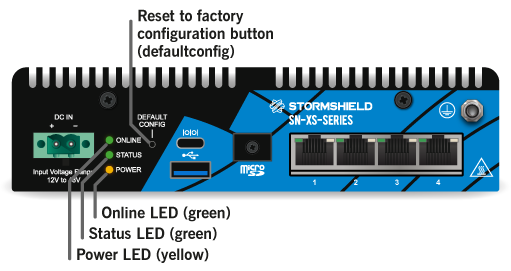

SN-XS-series-170 and SNi10 models
SN-M-Series-520 model
SN910 model
SN-M-Series-720 and SN-M-Series-920 models
SN1100 model

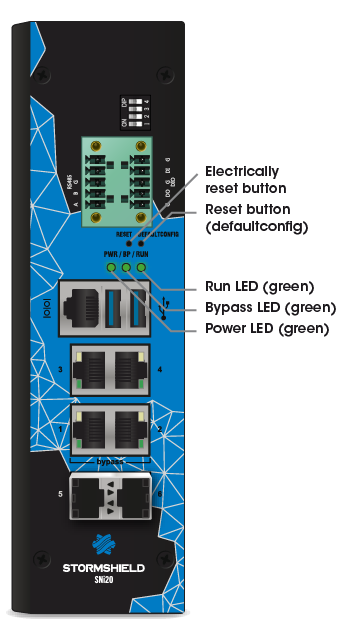

SNi20 model

SN2100 and SN3100 models

Hold down the button for about 5 seconds, until you see the Online and Status (Run on SNi20 models) LEDs blink and/or until you hear an audible signal. The reset procedure will automatically launch. After a few minutes, the initial settings will be recovered and the firewall will reboot.
