SN910 model
This product has an internal power supply.

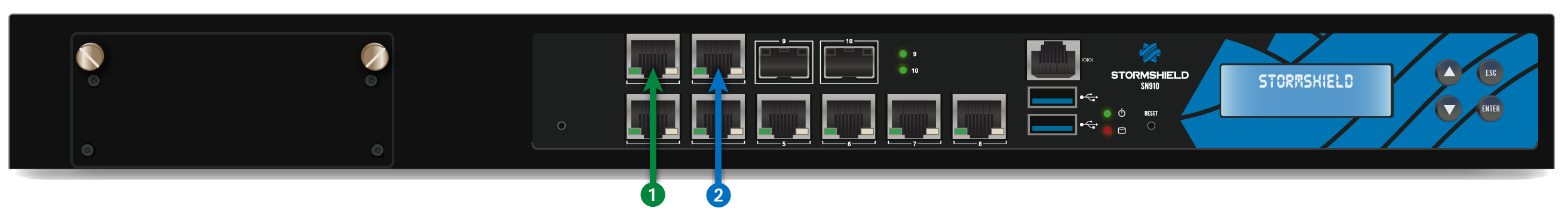

Front panel: connectors and LEDs
|
1 OUT interface
2 IN interface |
The SN910 model holds 8 1Gbe Ethernet interfaces and 2 SFP sockets for adding 1Gbe Ethernet transceivers. It allows the addition of one extension module with RJ45 (1Gbps) or fiber (1Gbps or 10Gbps) connectors.
Specifications of Stormshield Network-approved extension modules and transceivers are set out in sections Extension modules (SN710 and upwards) and Fiber Ethernet connectors.
1Power LED (green)
2SSD activity LED (red) |

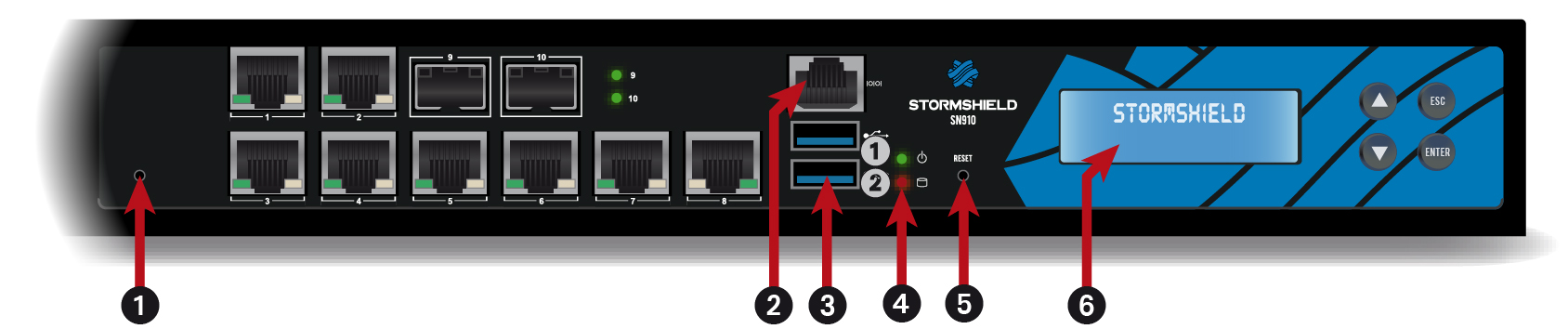

1 | This is the button for resetting the appliance to its factory settings (defaultconfig). |
2 | The serial port enables access to the product in console mode; the user can connect to the firewall directly from a computer. The default baud rate on these models is 9600 baud (8N1). |
3 | Two USB 3.0 ports that can be used for secure configurations or upgrades. You may also plug in a USB key, USB keyboard or approved USB modem. |
4 | The Power and SSD activity LEDs (from top to bottom). |
5 | The Reset button: electrically resets the Firewall. |
6 | LCD screen: indicates the version of the firmware installed, the active partition, the serial number of the product as well as the HA status if it has been enabled. |

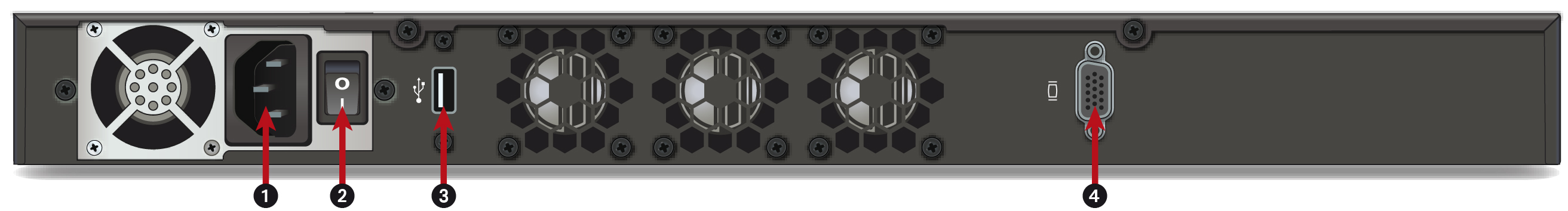

Rear panel: connectors
1 | The mains socket. |
2 | The product’s on/off switch. |
3 | The USB 2.0 port can be used for secure configurations or upgrades. You may also plug in a USB key, USB keyboard or approved USB modem. |
4 | The VGA port makes it possible to connect a monitor. |
