SN2100 and SN3100 models

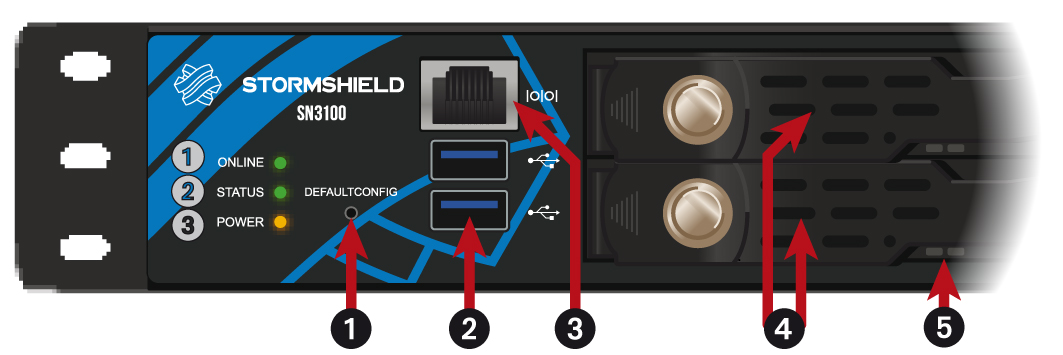

Front panel: connectors and LEDs

1 Online LED (green)
2 Status LED (green)
3 Power LED (yellow)
1
  • This is the button for resetting the appliance to its factory settings (defaultconfig).
    		•
    2 Two USB 3.0 ports that can be used for secure configurations or upgrades. You may also plug in a USB key, USB keyboard or approved USB modem.
    3 The serial port enables access to the product in console mode; the user can connect to the firewall directly from a computer. The default baud rate on these models is 115 200 baud (8N1).
    4 SSD racks for log storage (1 SSD by default on SN2100 models, RAID available as an option, 2 in RAID 1 on SN3100 models). Disks are hot-swappable on products in a RAID setup.
    5 The LEDs on SSD racks confirm whether the SSD has been accessed (blue LED on the right) and installed (green LED on the left).

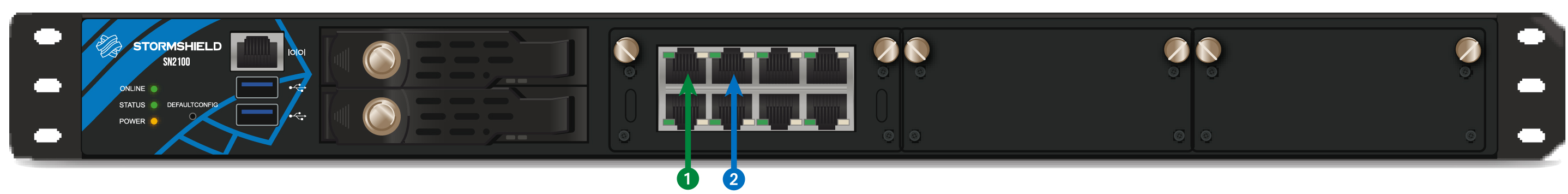

    SN2100 model

    This product has an internal removable power supply and is equipped with an SSD.
    1 OUT interface
    2 IN interface

    A second power supply module can be ordered separately for redundant power supply. You can also order a second SSD for a RAID installation.

    The SN2100 model offers 2 1Gbe Ethernet interfaces and allows the addition of 3 extension modules with RJ45 (1Gbps, 2.5Gbps or 10Gbps) or fiber (1Gbps, 10Gbps, 25Gbps or 40Gbps) connectors.

    NOTE

    For this model, network extension modules are sold separately and must be ordered.

    Specifications of Stormshield Network-approved extension modules and transceivers are set out in sections Extension modules (SN710 and upwards) and Fiber Ethernet connectors.

    SN3100 model

    This product has redundant internal power supplies. Two removable SSDs are installed in a RAID configuration.
    1 OUT interface
    2 IN interface

    The SN3100 model offers 2 1Gbe Ethernet interfaces and allows the addition of 3 extension modules with RJ45 (1Gbps, 2.5Gbps or 10Gbps) or fiber (1Gbps, 10Gbps, 25Gbps or 40Gbps) connectors.

    NOTE

    For this model, network extension modules are sold separately and must be ordered.

    Specifications of Stormshield Network-approved extension modules and transceivers are set out in sections Extension modules (SN710 and upwards) and Fiber Ethernet connectors.

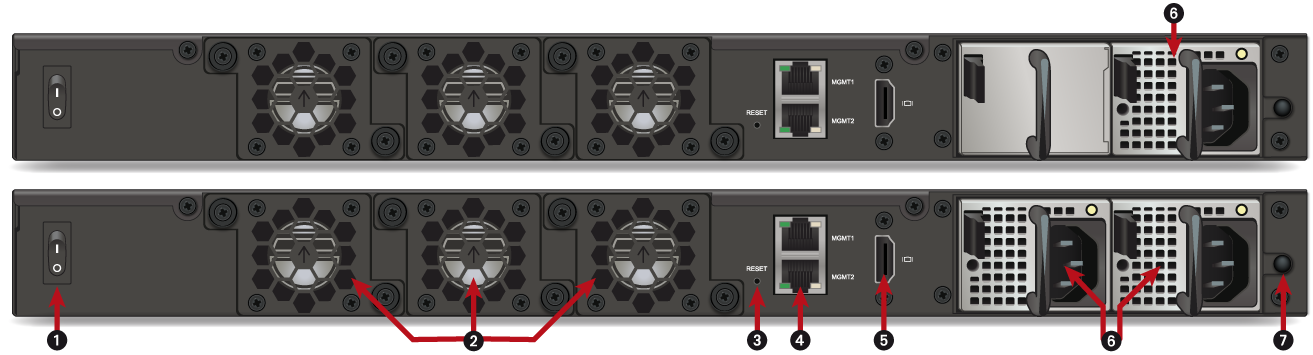

    Rear panel: connectors

    1 The power button makes it possible to switch the firewall on or off.
    2 Three independent hot-swappable fans in the event of a breakdown.
    3 The Reset button: electrically resets the firewall.
    4 Two ports dedicated to the management of the appliance (MGMT1 and MGMT2).
    5 The HDMI port makes it possible to connect a monitor.
    6 A mains socket (SN2100) or two mains sockets (SN3100) for redundant power supplies. Modules are hot-swappable on products with a redundant power supply.
    7 The Alarm off button. The alarm rings when a power supply module is missing or when there is a power failure on either module. Press this button to deactivate the alarm.
