SN210 and SN210W models
SN210 and SN210W firewalls are fanless. The products come with an external power adapter.

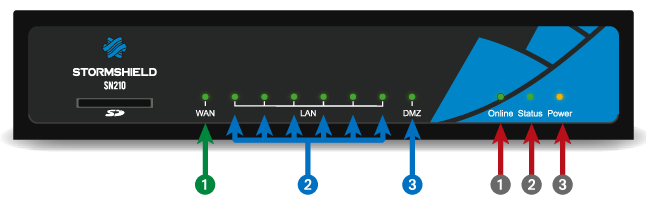

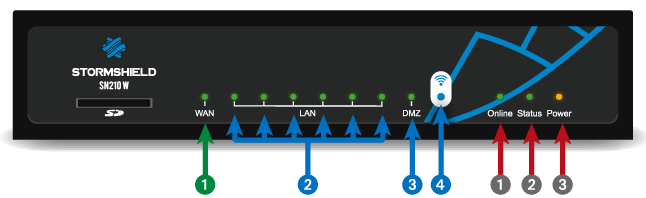

Front panel: LEDs
|
1 OUT interface
2 IN interface 3 DMZ interface 4 Wi-Fi interface |
|
 1 Online LED (green)2 Status LED (green) 3 Power LED (yellow) |

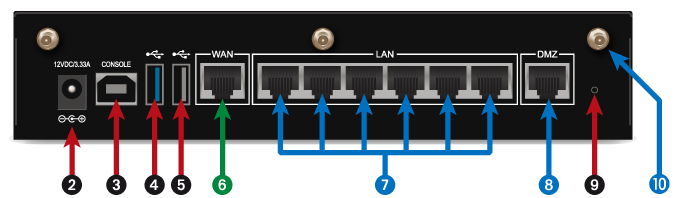

Connectors
|
|
The connectors on SN210 and SN210W models are located on the front and rear panels.
| 1 | This is the slot for the SD card*. |
| 2 | Plugging in the mains adapter automatically starts this product. |
| 3 | The USB port makes it possible to access the product in console mode**; the user can connect to the firewall directly from a computer. The default baud rate on these models is 115200 baud (8N1). |
| 4 | The USB 3.0 port can be used for secure configurations or upgrades. You can also plug a USB key or an approved USB modem into it. |
| 5 | The USB 2.0 port can be used for secure configurations or upgrades. You can also plug a USB key or an approved USB modem into it. |
SN210 and SN210W models hold eight 1GbE ports:
| 6 | The first zone is the EXTERNAL (OUT) interface, in external mode by default. It makes up the zone that is needed for connecting to the internet. |
| 7 | The second zone is identified by default in INTERNAL (IN) mode. It is made up of 6 switched ports. |
| 8 | The third zone is identified by default in INTERNAL (DMZ) mode. |
| 9 | This is the button for resetting the appliance to its factory settings (defaultconfig). |
| 10 | Sockets for Wi-Fi antennae. |
* The recommended type of SD card is at least Class 10 (C10) UHS Class 1 (U1) or App Performance 2 (A2). The memory card must be in a full-size physical SD format, in SDHC or SDXC standard. Only adapters provided with the card must be used. The maximum memory size supported is 2 TB. Stormshield recommends the use of high-endurance/industrial cards or preferably, those that have a built-in MLC flash chip developed by major brands (e.g., SanDisk, Western Digital, Innodisk, Transcend, etc.) and with at least 32 GB.
* This connection in console mode requires the installation of a third party driver. Depending on your operating system, you can download a driver from: https://www.prolific.com.tw/US/ShowProduct.aspx?p_id=225&pcid=41
