SN-XL-Series-5200 or SN-XL-Series-6200 models

Depending on the license, the SN-XL-Series platform (physical appliance) may either be an SN-XL-Series-5200 or SN-XL-Series-6200 model.

Temporary licenses correspond to the SN-XL-Series-5200 model by default. A license must be installed in order to upgrade to an SN-XL-Series-6200 model. For further information on updating licenses, refer to the module Updating the license.

It has two internal power supply units to provide a redundant power supply.

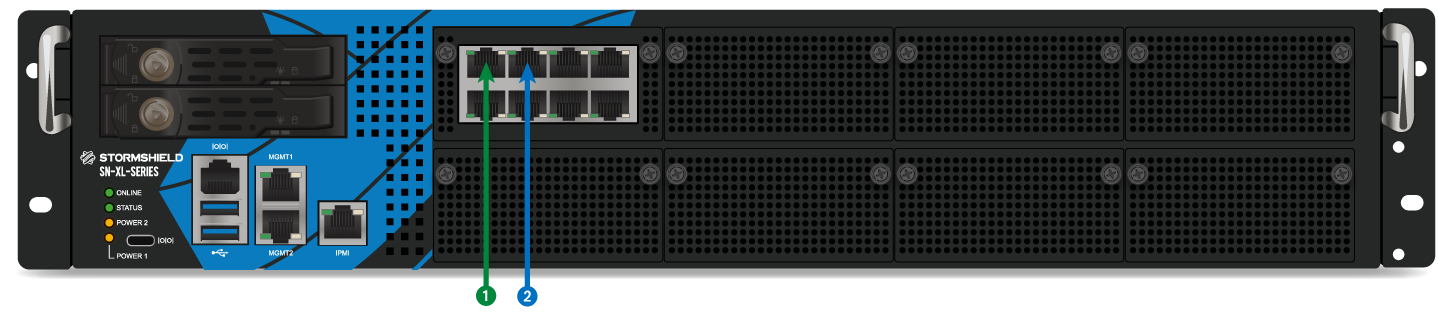

Front panel: connectors and LEDs

1 OUT interface 2 IN interface

The SN-XL-Series platform holds 2 2.5Gbe Ethernet interfaces by default (backward compatible with 100Mbe/1Gbe interfaces). On this model, 8 extension modules can be added with RJ45 (2.5Gbps or 10Gbps) or fiber (1Gbps, 10Gbps or 40Gbps) connectors.

NOTE
For this model, network extension modules are sold separately and must be ordered.

Specifications of Stormshield Network-approved extension modules and transceivers are set out in sections Extension modules (SN710 and upwards) and Fiber Ethernet connectors.

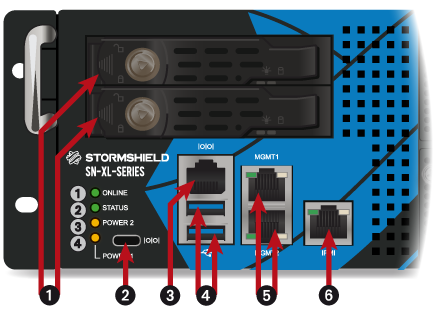

1 Online LED (green) 2 Status LED (green) 3 Power 2 LED (yellow) 4 Power 1 LED (yellow)

1	SSD racks for log storage (2 SSD in RAID1 1 and hot-swappable). The LEDs on racks confirm that installation (green LED at the top) and access (yellow LED at the bottom) have been successful.
2	The USB-C port makes it possible to access the product in console mode*; the user can connect to the firewall directly from a computer. The default baud rate on this model is 115200 baud (8N1).
3	The serial port enables access to the product in console mode; the user can connect to the firewall directly from a computer. The default baud rate on this model is 115200 baud (8N1).
4	Two USB 3.0 ports that can be used for secure configurations or upgrades. You may also plug in a USB key, USB keyboard or approved USB modem.
5	Two ports dedicated to the management of the appliance (MGMT1 and MGMT2).
6	The IPMI network port dedicated to the administration of the appliance via IPMI. Refer to the appendix Configuration and administration via IPMI.

* This connection in console mode requires the installation of a third party driver. Depending on your operating system, you can download a driver from: https://www.prolific.com.tw/US/ShowProduct.aspx?p_id=225&pcid=41

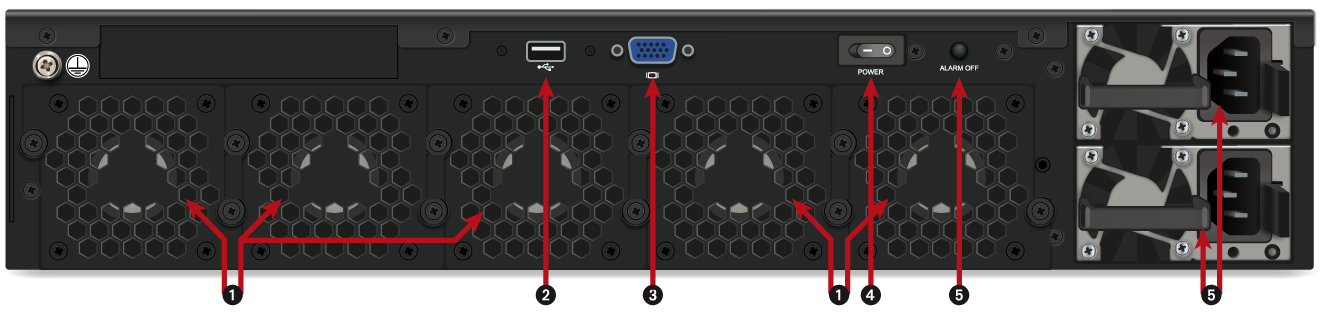

Rear panel: connectors

1	Connection of the protective earth circuit.
2	Five independent hot-swappable fans in the event of a breakdown.
3	The USB 2.0 port can be used for secure configurations or upgrades. You may also plug in a USB key, USB keyboard or approved USB modem.
4	The VGA port makes it possible to connect a monitor.
5	The power button makes it possible to switch the firewall on or off.
6	The Alarm off button. The alarm rings when a power supply module is missing or when there is a power failure on either module. Press this button to deactivate the alarm.
7	Two mains sockets for redundant power supplies. These modules are hot-swappable.
