SN-M-Series-720 and SN-M-Series-920 models
Depending on the license, the SN-M-Series platform (physical appliance) may either be an SN-M-Series-720 or SN-M-Series-920 model.
Temporary licenses correspond to the SN-M-Series-720 model by default. A license must be installed in order to upgrade to an SN-M-Series-920 model. For further information on updating licenses, refer to the module Updating the license.
It has two internal power supply units to provide a redundant power supply.

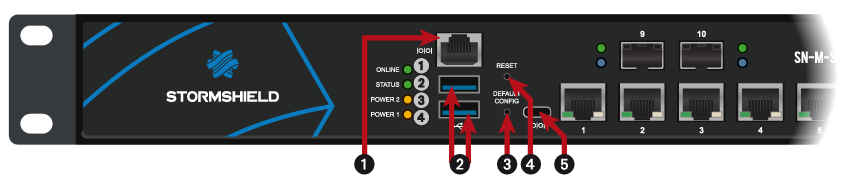

Front panel: connectors and LEDs
|
|

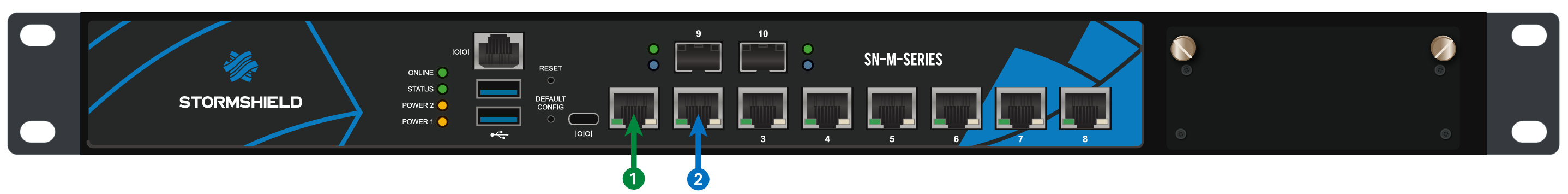

1 OUT interface
2 IN interface |
The SN-M-Series platform holds 8 2.5Gbe interfaces by default (backward compatible between 100Mbe/1Gbe) and 2 SFP+ sockets for adding 1Gbe/10Gbe transceivers. On this model, 1 extension module can be added with RJ45 (1Gbps or 10Gbps) or fiber (1Gbps, 10Gbps or 25Gpbs) connectors.
Specifications of Stormshield Network-approved extension modules and transceivers are set out in sections Extension modules (SN710 and upwards) and Fiber Ethernet connectors.
|
|
 1 Online LED (green)2 Status LED (green) 3 Power 2 LED (yellow)4 Power 1 LED (yellow) |
| 1 | The serial port enables access to the product in console mode; the user can connect to the firewall directly from a computer. The default baud rate on this model is 115200 baud (8N1). |
| 2 | Two USB 3.0 ports that can be used for secure configurations or upgrades. You may also plug in a USB key, USB keyboard or approved USB modem. |
| 3 | This is the button for resetting the appliance to its factory settings (defaultconfig). |
| 4 | The Reset button: electrically resets the firewall. |
| 5 | The USB-C port makes it possible to access the product in console mode*; the user can connect to the firewall directly from a computer. The default baud rate on this model is 115200 baud (8N1). |
* This connection in console mode requires the installation of a third party driver. Depending on your operating system, you can download a driver from: https://www.prolific.com.tw/US/ShowProduct.aspx?p_id=225&pcid=41

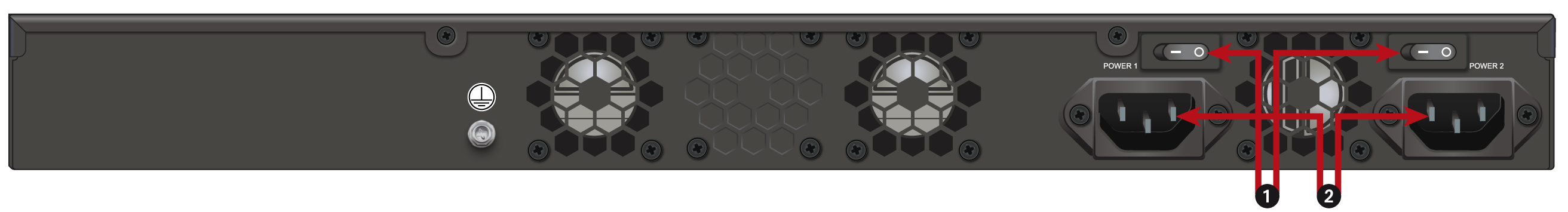

Rear panel: connectors
| 1 | Connection of the protective earth circuit. |
| 2 | Two Power buttons to switch the firewall on or off. |
| 3 | Two mains sockets for redundant power supplies. |
