SN510 and SN710 models

Front panel: connectors and LEDs

1 Online LED (green)

2 Status LED (green)

3 Power LED (yellow)

1	This is the button for resetting the appliance to its factory settings (defaultconfig).
2	The serial port enables access to the product in console mode; the user can connect to the firewall directly from a computer. The default baud rate on these models is 115200 baud (8N1).
3	Two USB 2.0 ports that can be used for secure configurations or upgrades. You can also plug a USB key or an approved USB modem into it.
4	The Power, Status and Online (from bottom to top) LEDs.
5	*The Reset* button:** electrically resets the firewall.

SN510 model

This product has an internal power supply.

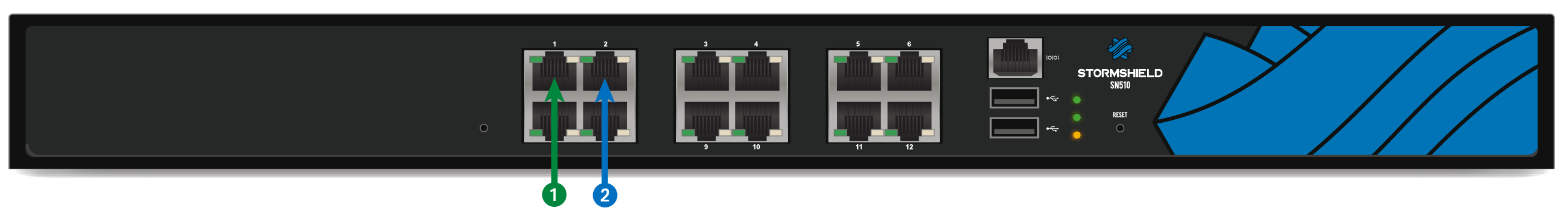

The SN510 model offers 12 1Gbe ports:

1 OUT interface
2 IN interface

SN710 model

This product has an internal power supply.

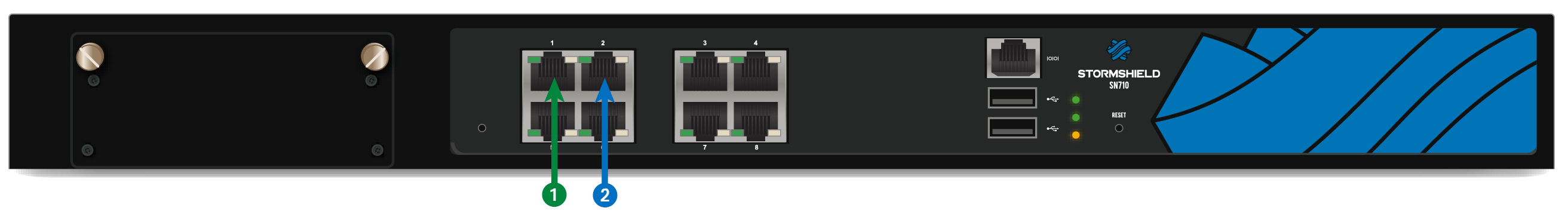

The SN710 model offers 8 1Gbe ports: It allows the addition of one extension module with RJ45 (1Gbps) or fiber (1Gbps or 10Gbps) connectors.

1 OUT interface
2 IN interface

Specifications of Stormshield Network-approved extension modules and transceivers are set out in sections Extension modules (SN710 and upwards) and Fiber Ethernet connectors.

Rear panel: connectors

The socket for the power cord is located on the rear panel of the product. A switch makes it possible to turn the product on or off.
