SN6100

NOTE
This model is equipped with an internal redundant power supply and its modules are hot-swappable.

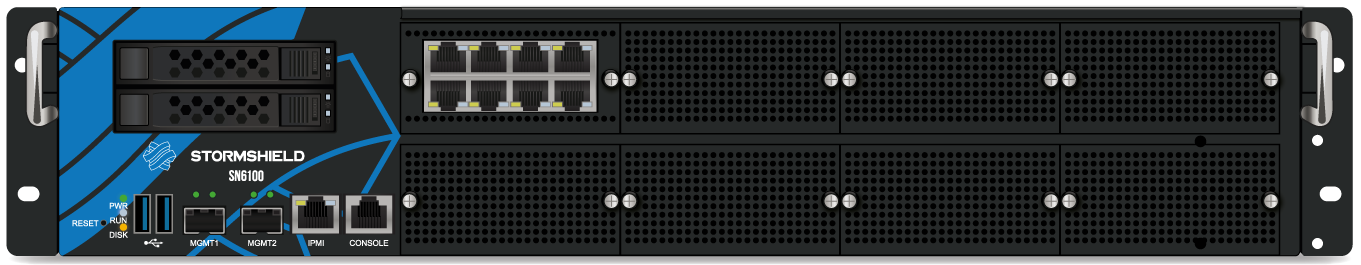

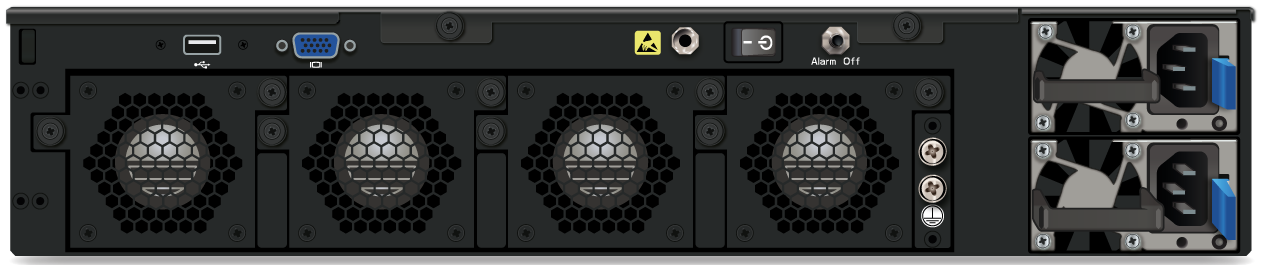

SN6100 model


  1. Disconnect the module from the power supply:

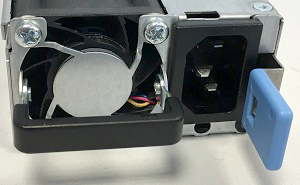

    • AC mains supply: disconnect the mains cable.

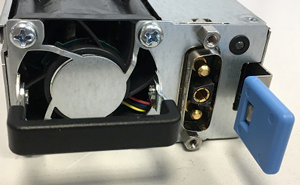

    • -48VDC supply: unscrew the knurled screw, then unplug the power cord on the module side.
  2. Extract the module: push the release lever sideways toward the extraction handle, and pull the handle. Hold the case of the module and remove it completely.

    WARNING
    The module's metal case serves as a heat sink and its temperature can reach +60°C at full power. It is therefore advisable to use a glove to hold the case.

  3. Insert the new module with the product label facing upwards. When the module is fully inserted, push until you hear a “click” that indicates that the module is locked in place. Check that the module is locked in place by pulling gently on the extraction handle: the module must not move.
  4. Attach the new module to its power supply:
    • AC mains supply: connect the mains cable.
    • -48VDC supply: plug in the supply cable's connector 1. Screw in the knurled screws.

Each PSU module is equipped with a light showing its state (two colors: green/red):

Module working correctly

  • Module connected to a power source but not installed in a firewall: green, blinking.

SN6100 halted

  • Module installed but not connected to a power source, and the other module is installed and connected: red, not blinking.
  • Module installed and connected to a power source: green, blinking.

SN6100 (running)

  • Module installed and connected to a power source: green, not blinking.
  • Module installed and not connected to a power source: red, not blinking (+ buzzer).

Module not functioning correctly

  • Module connected to a power source: red, not blinking.
