Verifying tunnel setup

You can check whether tunnels have been set up from the firewall's web administration interface.

Verifying tunnel setup on the hub

  1. Go to Monitoring > Monitoring > IPSec VPN tunnels.

  2. In the Status column, check the status of the tunnel: you will know that the tunnel has been correctly set up if you see the icon followed by OK.

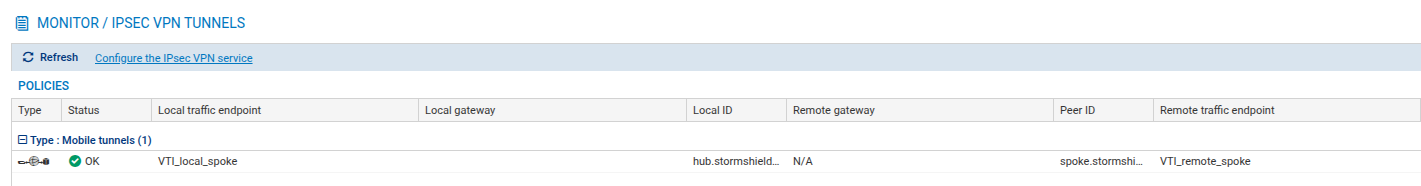

    Verifying tunnel setup on the hub

    If an issue occurred, it will be indicated with the icon Warning icon followed by No tunnels. You can find out more information on the issue encountered by scrolling over the status.

Verifying tunnel setup on the spoke

  1. Go to Monitoring > Monitoring > IPSec VPN tunnels.

  2. In the Status column, check the status of the tunnel: you will know that the tunnel has been correctly set up if you see the icon followed by OK.

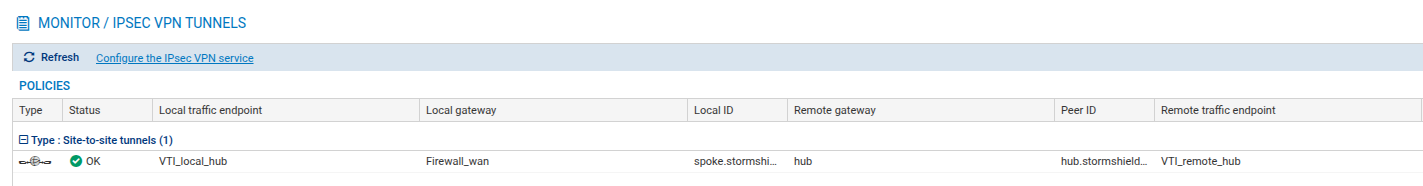

    Setting up tunnels on the spoke

    If an issue occurred, it will be indicated with the icon Warning icon followed by No tunnels. You can find out more information on the issue encountered by scrolling over the status.
