Architecture presented

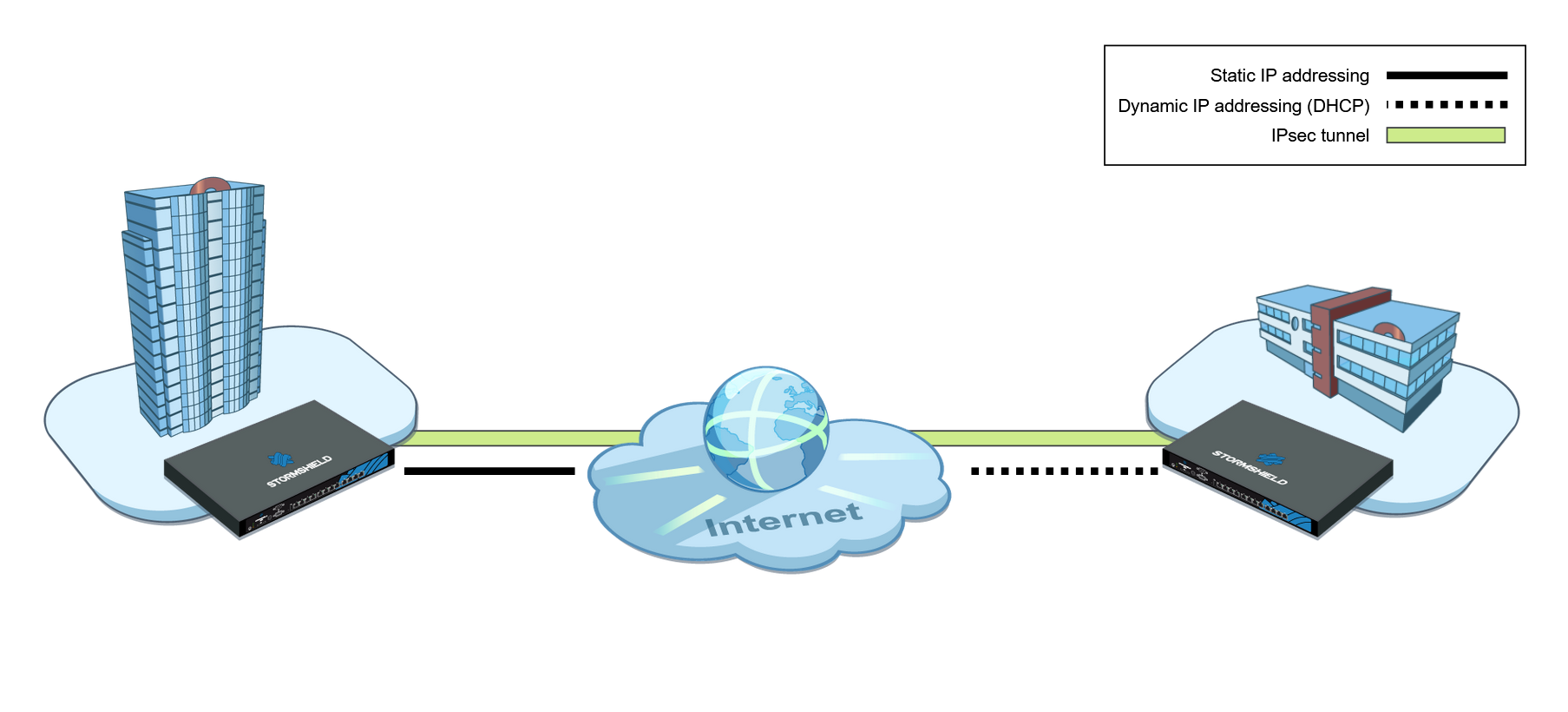

The main use case in this architecture presents a star topology with a central site (hub) and a satellite site (spoke). This type of architecture is not restricted to a single satellite site.

Architecture presented

Each site is able to access the Internet:

  • The central site (hub) has Internet access with a static IP address.

  • The satellite site (spoke) has Internet access with a dynamic IP address.

The constraint placed by this architecture is the dynamic addressing system on the spoke site, and as such, the need to set up routed IPsec tunnels with an anonymous peer.
